Seamed metal roof | insertion system
Single-rail insertion system with modules installed in landscape
- Clamping technology with clamping points on the seam flanging
- Module portrait and landscape mounting possible
- Quick and efficient mounting from above
- Also suitable for standing seam roofs made of copper
Your benefits
High-end installation aesthetics and timeefficient mounting thanks to insertion technology
Tension-free and floating module mounting
Completely pre-assembled seam clamp with connector for the insertion rail
Cost-optimised single-rail system
Components
Components
Click on the + Icons to see components of this mounting system.
Insertion rails
- high-end installation aesthetics
- time-efficient mounting
- tension-free and floating module mounting
Features
insertion system
portrait & landscape, as cross rail connection or as special assembly
C-rail/C-N-rail/N-rail/short profiles landscape
30-50mm
5.40m-all/2.20m (35mm + 40mm)
yes
03-001417/03-001380/03-001379/03-001416/03-001388/03-001374/03-001378/03-001375
Rail connector IR 5x100 A2
- internal connector for maximum assembly freedom
- works as expansion joint construction at the same time
Features
medium-high
insertion rail
100x5mm
100mm
-
03-000647
Edge stop IR
- optically tidy rail ends
- color-coordinated with the insertion rail
- prevents modules from slipping out
Features
insertion system
Torx 30
insertion rail
49x49mm
yes
03-000691/03-000693
Standing seam clamp set 150 M8 IR
- centric load distribution
- entirely preassembled
Features
standing seam
high
insertion rail
150x17mm
7.4mm
copper set with VA saddle
03-001028;03-001466
Rounded seam clamp set 150 IR M8
- Centric load application
- Completely pre-assembled
Features
Round seam
High
Insertion rails
24 x 36 mm
24 mm
03-001763
Snap and angle fold seam clamp set 150 IR M8
- Centric load application
- Completely pre-assembled
Features
Snap and angled seam
High
Insertion rails
14 x 24 mm
14 mm
03-001765
Accessories
Downloads
Module recommendation insertion system portrait
Manufacturer: AEG Solar, Aleo Solar, Aiko Solar, Canadian Solar, EXE Solar, Meyer Burger, Solyco, Sonnenkraft, SunPower Maxeon, Trina Solar, SOLARWATT
The values for wind and snow loads (Pa) can be found in the module manufacturer's installation instructions. The load values must be checked individually for each module type. The modules are held in place by a slide-in rail on the short side of the frame.
a = 56 mm
b = 30 - 50 mm
(Frame height)
Module recommendation insertion system landscape
Manufacturer: AEG Solar, Aleo Solar, Aiko Solar, Canadian Solar, EXE Solar, Meyer Burger, SoLuxTec, Solyco, Sonnenkraft, SunPower Maxeon, SOLARWATT
The values for wind and snow loads (Pa) can be found in the module manufacturer's installation instructions. The load values must be checked individually for each module type. The modules are held in place by a slide-in rail on the long side of the frame.
a = 56 mm
b = 30 - 50 mm
(Frame height)
Insertion system on copper roofs

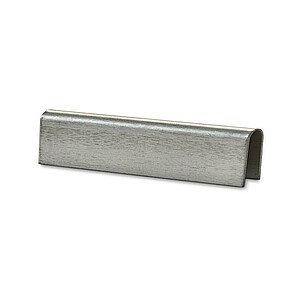

With the stainless steel saddle for standing seam clamps, the insertion system can also be used on standing seam roofs with copper roofing.
How to install the copper saddle
More information about the seamed metal roof mounting system
Proven clamping technology on standing seams and elegant system aesthetics thanks to our insertion system – the combination of extended standing seam clamps and proven insertion rails makes it possible. Whether on a gabled roof or a mono-pitch roof, with our insertion system for standing seam roofs, you can install the modules in portrait or landscape on the roof coverage. You can choose between blank aluminium and black insertion rails – we have both versions ready for you and suitable for all module frame heights.
The design of the standing seam clamp allows for gentle fastening to the standing seam flanging and at the same time for simple direct fastening of the insertion rail with the proven holding bracket on the standing seam clamp. This makes our system efficient in assembly and economical because there is no need for a cross rail. We make sure the system looks good as well: the edge stop forms the closure at the edge of the system and also secures the modules in place. Fewer components, completely pre-assembled – designed for quick and easy assembly.
You will find an overview of all components in the mounting instructions.
