System details

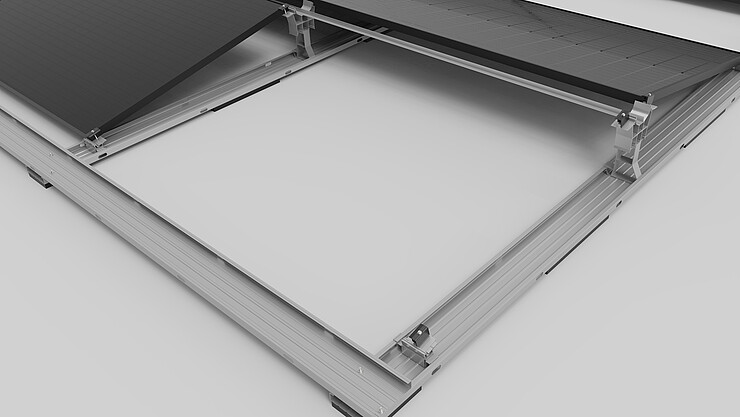

Flat roof system II single layer « the allrounder »
Our solution for east-west or south direction
- Optimum elevation angle 13° for good efficieny and self-cleaning
- Cross connections at module field edges for high stability
- High flexibility thanks to individually selectable row distance
- Connected module fields up 34 m length possible
Your benefits
Your benefits
Wind-tunnel tested aerodynamics
Wide and continuous base trough for good load redistribution to prevent damage on the roof insulation
Module supports and base feet with click-fit function – no screwing necessary
Suitable for wide modules
Components
Components east-west system
Components east-west system
Click on the + Icons to see components of this mounting system.
Flat roof mid clamp
Middle clamp for flat roof single layer system, for fixing modules on the short side of the frame
- screw with drill bit for easy assembly
- entirely pre-assembled
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west single-layer system, flat roof south single-layer system
flat roof east-west single-layer system, flat roof south single-layer system
Application field:
clamping short frame side (mid clamp)
clamping short frame side (mid clamp)
Module frame height:
28-42mm, 43-52mm
28-42mm, 43-52mm
Dimensions:
11.4x52mm
11.4x52mm
Flat roof end clamp (short side)
For module mounting on the short frame side for flat roof system single-layer
- screw with drill bit for easy assembly
- entirely pre-assembled
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west single-layer system, flat roof south single-layer system
flat roof east-west single-layer system, flat roof south single-layer system
Application field:
clamping short frame side (end clamp)
clamping short frame side (end clamp)
Module frame height:
28-33mm, 34-42mm, 43-52mm
28-33mm, 34-42mm, 43-52mm
Dimensions:
14x52mm
14x52mm
Flat roof end clamp
End clamp for flat roof single layer system, for fixing modules on the long side of the frame
- screw with drill bit for easy assembly
- entirely pre-assembled
- third base trough
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west single-layer system, flat roof south single-layer system
flat roof east-west single-layer system, flat roof south single-layer system
Application field:
clamping long frame side (end clamp)
clamping long frame side (end clamp)
Module frame height:
28-33mm, 34-42mm, 43-52mm
28-33mm, 34-42mm, 43-52mm
Dimensions:
14x52mm
14x52mm
Cable clip
For securing the modules and string cables
- matched to our assembly system components
- optionally with clip function
- available in various lengths and designs
Features
Mounting type:
clamping system, insertion system
clamping system, insertion system
Module assembly:
portrait & landscape
portrait & landscape
Compatible with:
all novotegra pitched roof and flat roof solutions
all novotegra pitched roof and flat roof solutions
Module frame height:
all
all
Lengths:
140mm/200mm/280mm/360mm
140mm/200mm/280mm/360mm
Variants:
clip for profile flange 1-3mm/clip for profile flange 3-6mm
clip for profile flange 1-3mm/clip for profile flange 3-6mm
Module support east-west single
Rear module support, to clip into the base trough and to connect the support brace
- quick click-fit without additional screwing
- predrilled mounting hole for easy positioning
- constructed as a one-hip for light loads
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west single-layer system
flat roof east-west single-layer system
Application field:
module support back
module support back
Dimensions:
255x60x125mm
255x60x125mm
Product number:
03-001324
03-001324
Module support east-west double
Rear module support, to clip into the base trough and to connect the support brace
- quick click-fit without additional screwing
- predrilled mounting hole for easy positioning
- constructed as a two-hip for heavy loads
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west single-layer system
flat roof east-west single-layer system
Application field:
module support back
module support back
Dimensions:
255x60x125mm
255x60x125mm
Product number:
03-001325
03-001325
Base foot
Front module support of the flat roof single layer system
- quick click-fit without additional screwing
- predrilled mounting hole for easy positioning
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west double-layer, flat roof south single-layer system
flat roof east-west double-layer, flat roof south single-layer system
Application field:
module support front
module support front
Dimensions:
80x37x53mm
80x37x53mm
Product number:
03-000343
03-000343

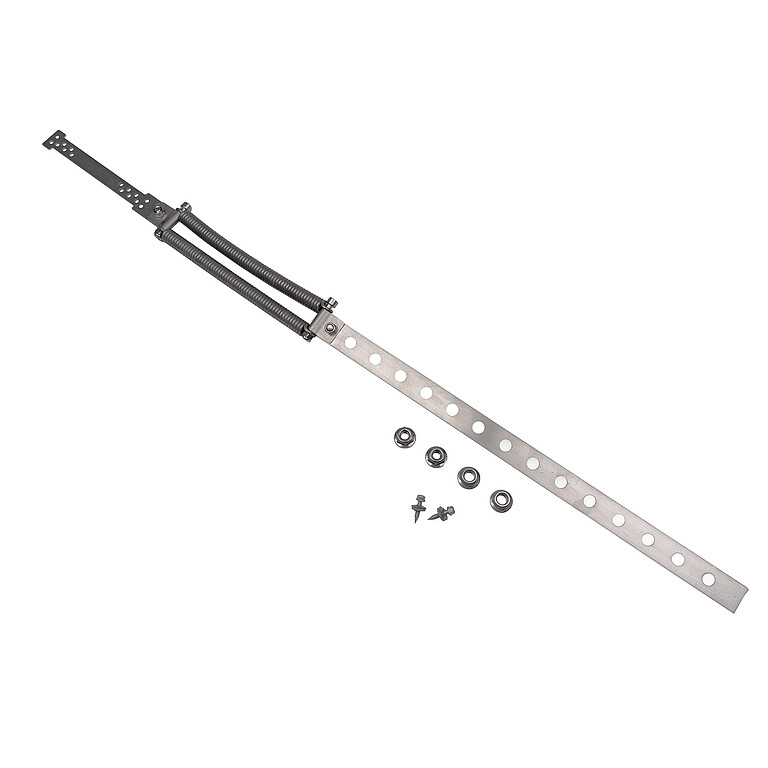

Support brace | Flat roof II
For load transfer, fixed on the flat roof module support sets east-west single layer
- load transfer between modules
- ballast reduction through system coupling
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west single-layer, flat roof II east-west
flat roof east-west single-layer, flat roof II east-west
Application field:
cross bracing of the system
cross bracing of the system
Dimensions:
20x20x1,5 mm
20x20x1,5 mm
Lengths flat roof II:
1,85m, 2,40m, 4,45m, 5,40m
1,85m, 2,40m, 4,45m, 5,40m
Wind deflector
Wind deflector for flat roof single layer system for wind deflection and ballast reduction
- aerodynamic design und easy installation
- for cross connection and load redistribution
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof south single-layer system
flat roof south single-layer system
Application field:
wind deflection and cross bracing
wind deflection and cross bracing
Dimensions:
270x70mm
270x70mm
Lengths:
1.95m/2.25m/2.35m
1.95m/2.25m/2.35m
Module support closed
Rear module support of the closed flat roof single layer system, to clip into the base trough and to fix the wind deflector on it
- quick click-fit without additional screwing
- predrilled mounting hole for easy positioning
- aerodynamic connection of wind deflector 13°
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof south single-layer system
flat roof south single-layer system
Application field:
module support back
module support back
Dimensions:
260x104x60mm
260x104x60mm
Product number:
03-001243
03-001243
Base trough 150-30
For flat roof single layer or cross layer; without protection layer
- wide and continuous base troughs for optimum load redistribution and low surface pressure
- much space for ballast, optionally ballast trough available
- top cover when used as a cable channel
Features
Roof type:
gravel roof
gravel roof
Sealant strip:
none
none
Compatible with:
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
Application field:
base trough for gravel roof or as connecting rail for cross bracing
base trough for gravel roof or as connecting rail for cross bracing
Dimensions:
150x30x120mm
150x30x120mm
Lengths:
2.20m/6.00m
2.20m/6.00m
Base trought 150-30 with protection layer 6mm
For flat roof single layer or cross layer; with protection layer
- wide and continuous base troughs for optimum load redistribution and low surface pressure
- much space for ballast, optionally ballast trough available
- top cover when used as a cable channel
Features
Roof type:
bitumen roof, foil roof, (gravel roof)
bitumen roof, foil roof, (gravel roof)
Protection layer:
continuous PE separating layer 6mm
continuous PE separating layer 6mm
Compatible with:
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
Application field:
bitumen roof and foil roof, with base trough parallel to the drainage direction
bitumen roof and foil roof, with base trough parallel to the drainage direction
Dimensions:
150x36x120mm
150x36x120mm
Lengths:
2.20m/6.00m
2.20m/6.00m
Base troughs with cross drainage
For flat roof single layer or cross layer; with cross drainage
- wide and continuous base troughs for optimum load redistribution and low surface pressure
- much space for ballast, optionally ballast trough available
- top cover when used as a cable channel
Features
Roof type:
bitumen roof, foil roof, (gravel roof)
bitumen roof, foil roof, (gravel roof)
Protection layer:
PE pads 20mm in 610mm distance
PE pads 20mm in 610mm distance
Compatible with:
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
Application field:
bitumen roof and foil roof, with base trough across the drainage direction
bitumen roof and foil roof, with base trough across the drainage direction
Dimensions:
150x50x120mm
150x50x120mm
Lengths:
2.20m/6.00m
2.20m/6.00m
Base trough connector set 150-30
Rail connector to extend base troughs
- internal connector for maximum assembly freedom
Features
Load capacity:
high
high
Compatible with:
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
Application field:
connection of base trough 150-30 up to max. 17m length
connection of base trough 150-30 up to max. 17m length
Dimensions:
16x26mm
16x26mm
Length:
380mm
380mm
Base trough expansion joint 150-30
For connection of two base troughs
- connected module fields up 34 m length possible
Features
Load capacity:
high
high
Compatible with:
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
Application field:
connection of base trough 150-30 up to max. 34m length
connection of base trough 150-30 up to max. 34m length
Dimensions:
150x25mm
150x25mm
Length:
380mm
380mm
Components south system
Components south system
Click on the + Icons to see components of this mounting system.
Flat roof mid clamp
Middle clamp for flat roof single layer system, for fixing modules on the short side of the frame
- screw with drill bit for easy assembly
- entirely pre-assembled
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west single-layer system, flat roof south single-layer system
flat roof east-west single-layer system, flat roof south single-layer system
Application field:
clamping short frame side (mid clamp)
clamping short frame side (mid clamp)
Module frame height:
28-42mm, 43-52mm
28-42mm, 43-52mm
Dimensions:
11.4x52mm
11.4x52mm
Flat roof end clamp (short side)
For module mounting on the short frame side for flat roof system single-layer
- screw with drill bit for easy assembly
- entirely pre-assembled
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west single-layer system, flat roof south single-layer system
flat roof east-west single-layer system, flat roof south single-layer system
Application field:
clamping short frame side (end clamp)
clamping short frame side (end clamp)
Module frame height:
28-33mm, 34-42mm, 43-52mm
28-33mm, 34-42mm, 43-52mm
Dimensions:
14x52mm
14x52mm
Flat roof end clamp
End clamp for flat roof single layer system, for fixing modules on the long side of the frame
- screw with drill bit for easy assembly
- entirely pre-assembled
- third base trough
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west single-layer system, flat roof south single-layer system
flat roof east-west single-layer system, flat roof south single-layer system
Application field:
clamping long frame side (end clamp)
clamping long frame side (end clamp)
Module frame height:
28-33mm, 34-42mm, 43-52mm
28-33mm, 34-42mm, 43-52mm
Dimensions:
14x52mm
14x52mm
Cable clip
For securing the modules and string cables
- matched to our assembly system components
- optionally with clip function
- available in various lengths and designs
Features
Mounting type:
clamping system, insertion system
clamping system, insertion system
Module assembly:
portrait & landscape
portrait & landscape
Compatible with:
all novotegra pitched roof and flat roof solutions
all novotegra pitched roof and flat roof solutions
Module frame height:
all
all
Lengths:
140mm/200mm/280mm/360mm
140mm/200mm/280mm/360mm
Variants:
clip for profile flange 1-3mm/clip for profile flange 3-6mm
clip for profile flange 1-3mm/clip for profile flange 3-6mm
Module support east-west single
Rear module support, to clip into the base trough and to connect the support brace
- quick click-fit without additional screwing
- predrilled mounting hole for easy positioning
- constructed as a one-hip for light loads
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west single-layer system
flat roof east-west single-layer system
Application field:
module support back
module support back
Dimensions:
255x60x125mm
255x60x125mm
Product number:
03-001324
03-001324
Module support east-west double
Rear module support, to clip into the base trough and to connect the support brace
- quick click-fit without additional screwing
- predrilled mounting hole for easy positioning
- constructed as a two-hip for heavy loads
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west single-layer system
flat roof east-west single-layer system
Application field:
module support back
module support back
Dimensions:
255x60x125mm
255x60x125mm
Product number:
03-001325
03-001325
Base foot
Front module support of the flat roof single layer system
- quick click-fit without additional screwing
- predrilled mounting hole for easy positioning
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west double-layer, flat roof south single-layer system
flat roof east-west double-layer, flat roof south single-layer system
Application field:
module support front
module support front
Dimensions:
80x37x53mm
80x37x53mm
Product number:
03-000343
03-000343
Support brace | Flat roof II
For load transfer, fixed on the flat roof module support sets east-west single layer
- load transfer between modules
- ballast reduction through system coupling
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west single-layer, flat roof II east-west
flat roof east-west single-layer, flat roof II east-west
Application field:
cross bracing of the system
cross bracing of the system
Dimensions:
20x20x1,5 mm
20x20x1,5 mm
Lengths flat roof II:
1,85m, 2,40m, 4,45m, 5,40m
1,85m, 2,40m, 4,45m, 5,40m
Wind deflector
Wind deflector for flat roof single layer system for wind deflection and ballast reduction
- aerodynamic design und easy installation
- for cross connection and load redistribution
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof south single-layer system
flat roof south single-layer system
Application field:
wind deflection and cross bracing
wind deflection and cross bracing
Dimensions:
270x70mm
270x70mm
Lengths:
1.95m/2.25m/2.35m
1.95m/2.25m/2.35m
Module support closed
Rear module support of the closed flat roof single layer system, to clip into the base trough and to fix the wind deflector on it
- quick click-fit without additional screwing
- predrilled mounting hole for easy positioning
- aerodynamic connection of wind deflector 13°
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof south single-layer system
flat roof south single-layer system
Application field:
module support back
module support back
Dimensions:
260x104x60mm
260x104x60mm
Product number:
03-001243
03-001243
Base trough 150-30
For flat roof single layer or cross layer; without protection layer
- wide and continuous base troughs for optimum load redistribution and low surface pressure
- much space for ballast, optionally ballast trough available
- top cover when used as a cable channel
Features
Roof type:
gravel roof
gravel roof
Sealant strip:
none
none
Compatible with:
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
Application field:
base trough for gravel roof or as connecting rail for cross bracing
base trough for gravel roof or as connecting rail for cross bracing
Dimensions:
150x30x120mm
150x30x120mm
Lengths:
2.20m/6.00m
2.20m/6.00m
Base trought 150-30 with protection layer 6mm
For flat roof single layer or cross layer; with protection layer
- wide and continuous base troughs for optimum load redistribution and low surface pressure
- much space for ballast, optionally ballast trough available
- top cover when used as a cable channel
Features
Roof type:
bitumen roof, foil roof, (gravel roof)
bitumen roof, foil roof, (gravel roof)
Protection layer:
continuous PE separating layer 6mm
continuous PE separating layer 6mm
Compatible with:
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
Application field:
bitumen roof and foil roof, with base trough parallel to the drainage direction
bitumen roof and foil roof, with base trough parallel to the drainage direction
Dimensions:
150x36x120mm
150x36x120mm
Lengths:
2.20m/6.00m
2.20m/6.00m
Base troughs with cross drainage
For flat roof single layer or cross layer; with cross drainage
- wide and continuous base troughs for optimum load redistribution and low surface pressure
- much space for ballast, optionally ballast trough available
- top cover when used as a cable channel
Features
Roof type:
bitumen roof, foil roof, (gravel roof)
bitumen roof, foil roof, (gravel roof)
Protection layer:
PE pads 20mm in 610mm distance
PE pads 20mm in 610mm distance
Compatible with:
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
Application field:
bitumen roof and foil roof, with base trough across the drainage direction
bitumen roof and foil roof, with base trough across the drainage direction
Dimensions:
150x50x120mm
150x50x120mm
Lengths:
2.20m/6.00m
2.20m/6.00m
Base trough connector set 150-30
Rail connector to extend base troughs
- internal connector for maximum assembly freedom
Features
Load capacity:
high
high
Compatible with:
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
Application field:
connection of base trough 150-30 up to max. 17m length
connection of base trough 150-30 up to max. 17m length
Dimensions:
16x26mm
16x26mm
Length:
380mm
380mm
Base trough expansion joint 150-30
For connection of two base troughs
- connected module fields up 34 m length possible
Features
Load capacity:
high
high
Compatible with:
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
flat east-west single-layer system, flat roof south single-layer system (flat roof east-west cross-layer system, flat roof south cross layer system)
Application field:
connection of base trough 150-30 up to max. 34m length
connection of base trough 150-30 up to max. 34m length
Dimensions:
150x25mm
150x25mm
Length:
380mm
380mm
Downloads
Downloads
Data sheets
Mounting instructions
Product advantages
Tender texts
Mounting tutorials
Video
How to easily mount our flat roof system single-layer with east-west orientation.
How to easily mount our flat roof system single-layer with south orientation.
Approvals
Module approvals
| Manufacturer | Module | Flat roof II / Flat roof III | Flat roof II with 3rd base trough | Insertion system portrait | Insertion system landscape | Insertion system portrait with support rail | Status | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Suction | Pressure | Suction | Pressure | Suction | Pressure | Suction | Pressure | Suction | Pressure | |||
The specified values (given in Pascal (Pa)) correspond to the permissible load. The safety factor of 1.5 to be considered according to IEC 61215 is already included. To the best of our knowledge and conscience, we have compiled the listed data for you from the individual approvals or installation instructions of the manufacturers. We accept no liability for transmission errors or changes to the values at short notice.
