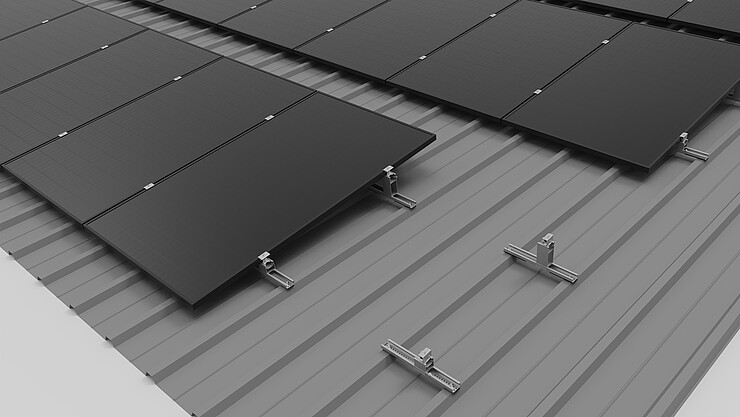

Trapezoidal metal roof | clamping system portrait with light elevation
Clamping system with direct fixing and modules installed elevated in portrait
- Module clamping in the optimum clamping range
- Reduced logistical effort on the roof
- Quick and efficient mounting from above
- Electrically conductive connection between the mounting system and the roof membrane
Your benefits
Increase in module efficiency thanks to 5° elevation angle
Low material costs and easy handling
High holding forces thanks to chipless direct fixing with building authority-approved thin sheet screws
Only one mounting tool necessary
Components
Components
Click on the + Icons to see components of this mounting system.
Middle clamp blank/black
- easy to mount thanks to locking function
- little space required
Features
clamping system
portrait & landscape, single-layer or cross rail connection (depending on the roof type)
C-rail/ C-N-rail, short rails, Flat roof III
30-42mm/43-52mm
11.4mmx52mm
yes
03-001345/03-001346/03-000285/03-000286
End clamp blank/black
- easy to mount thanks to locking function
- little space required
- flush termination with the rail possible
Features
clamping system
portrait & landscape, single-layer or cross rail connection
C-rail/ C-N-rail, short rails, Flat roof III
30-42mm/43-52mm
14mmx52mm
yes
03-001237/03-001236/03-000287/03-000288
Module support 5° low
- installed on short profile C24 or C47 385mm
- quick and easy mounting
- 5° elevation angle for higher module efficiency
Features
clamping system
portrait
short profile C24 with EPDM 385mm / short profile C47 with EPDM 385mm
module support front
60x58x65mm
03-001517
Module support 5° high
- installed on short profile C24 or C47 385mm
- quick and easy mounting
- 5° elevation angle for higher module efficiency
Features
clamping system
portrait
short profile C24 with EPDM 385mm / short profile C47 with EPDM 385mm
module support back
60x58x140mm
03-001516
Short rail C24 with EPDM 385mm
- entirely pre-assembled with EPDM-sealing and perforations
- flexible positioning trough perforations
- material-saving fixation
Features
can be used as module support rail
portrait
high
module clamps
24x52mm
385mm
-
03-001081
Short rail C47 with EPDM 385mm
- entirely pre-assembled with EPDM-sealing and perforations
- flexible positioning trough perforations
- excellent module rear ventilation with extra space to
the roof covering
Features
can be used as module support rail
portrait
high
module clamps
47x52mm
385mm
-
03-000873
Accessories
Further solutions for elevated applications

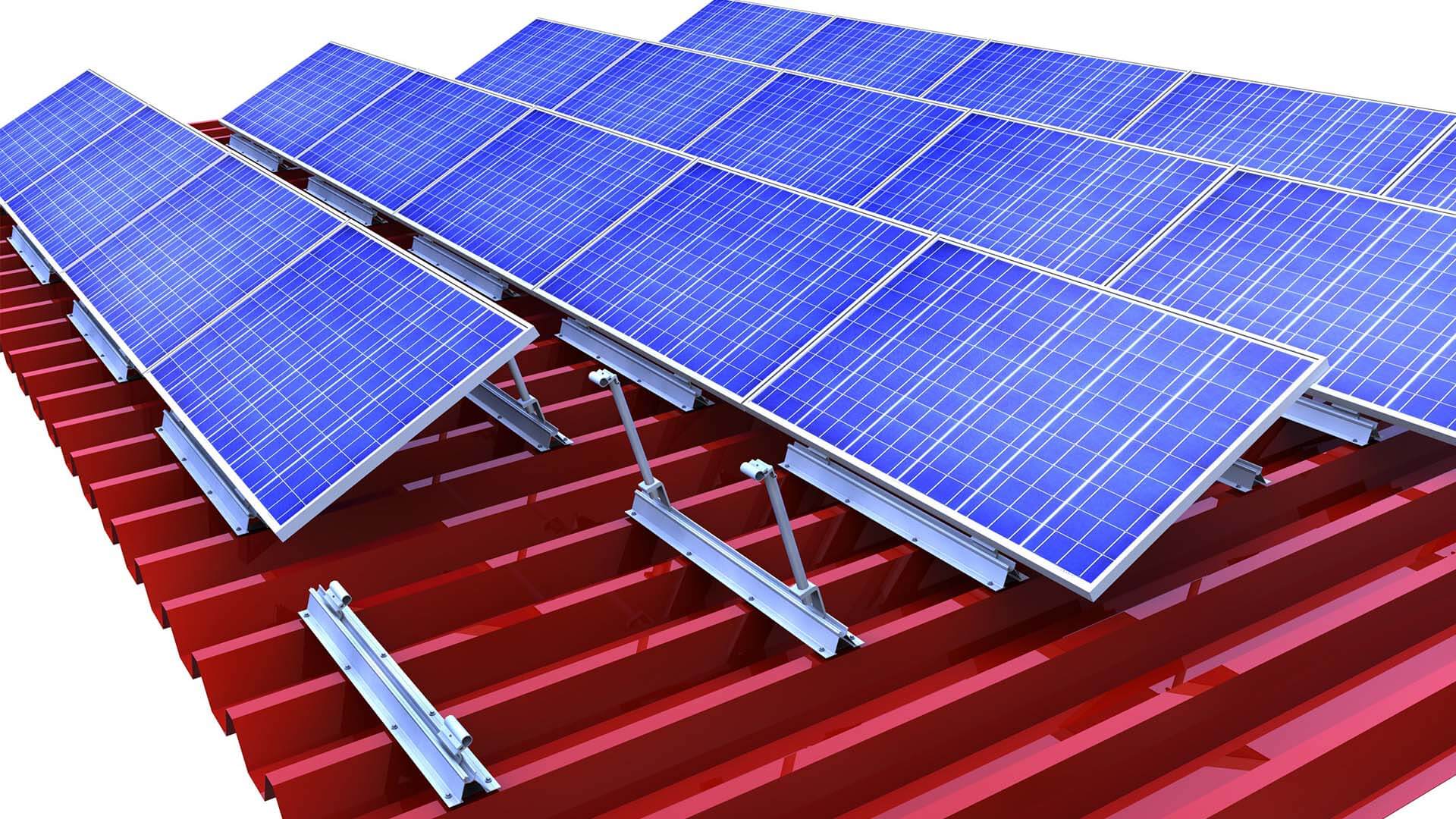

Clamping system: South-facing

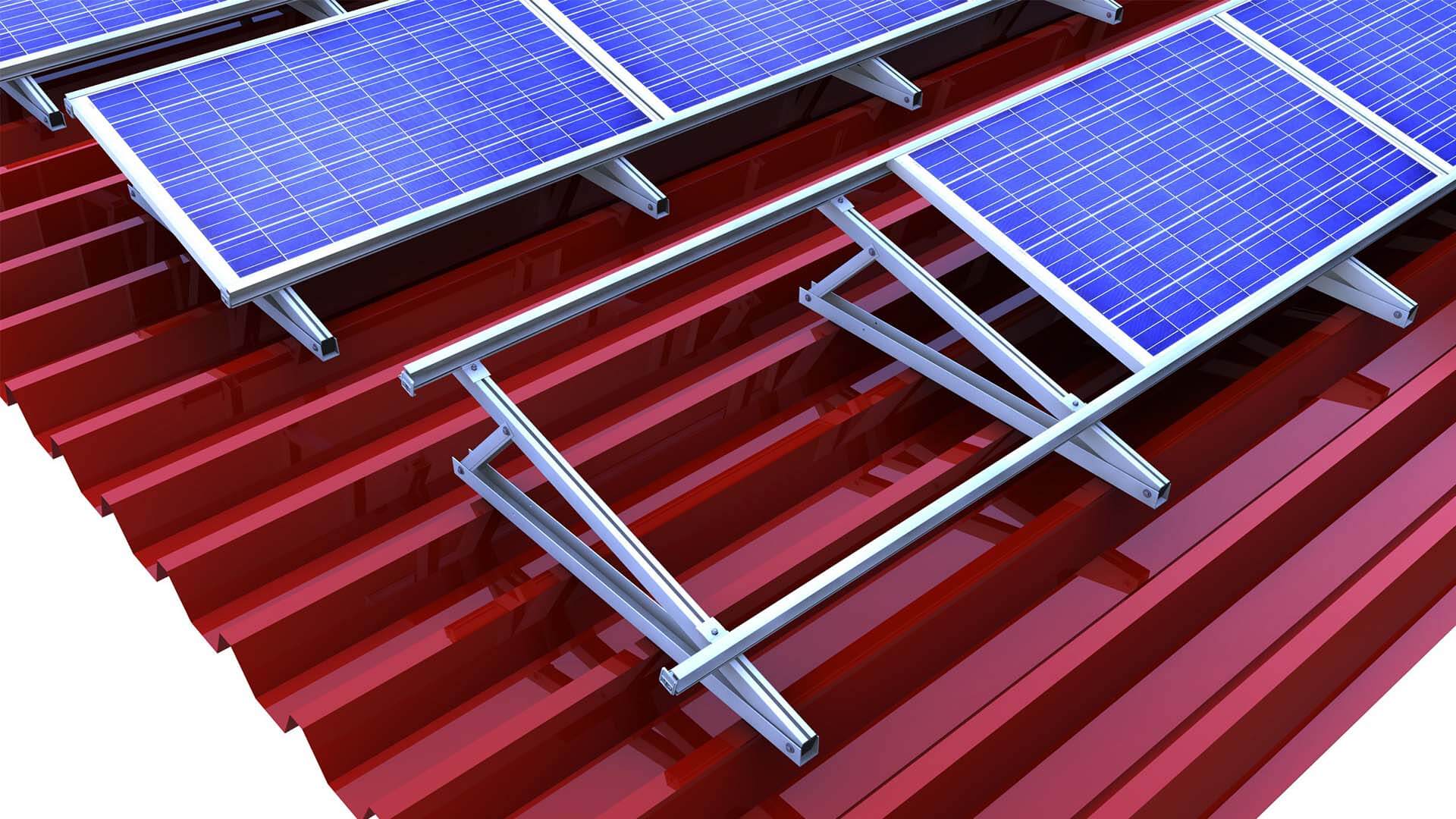

Clamping system: South-facing on east-west roof

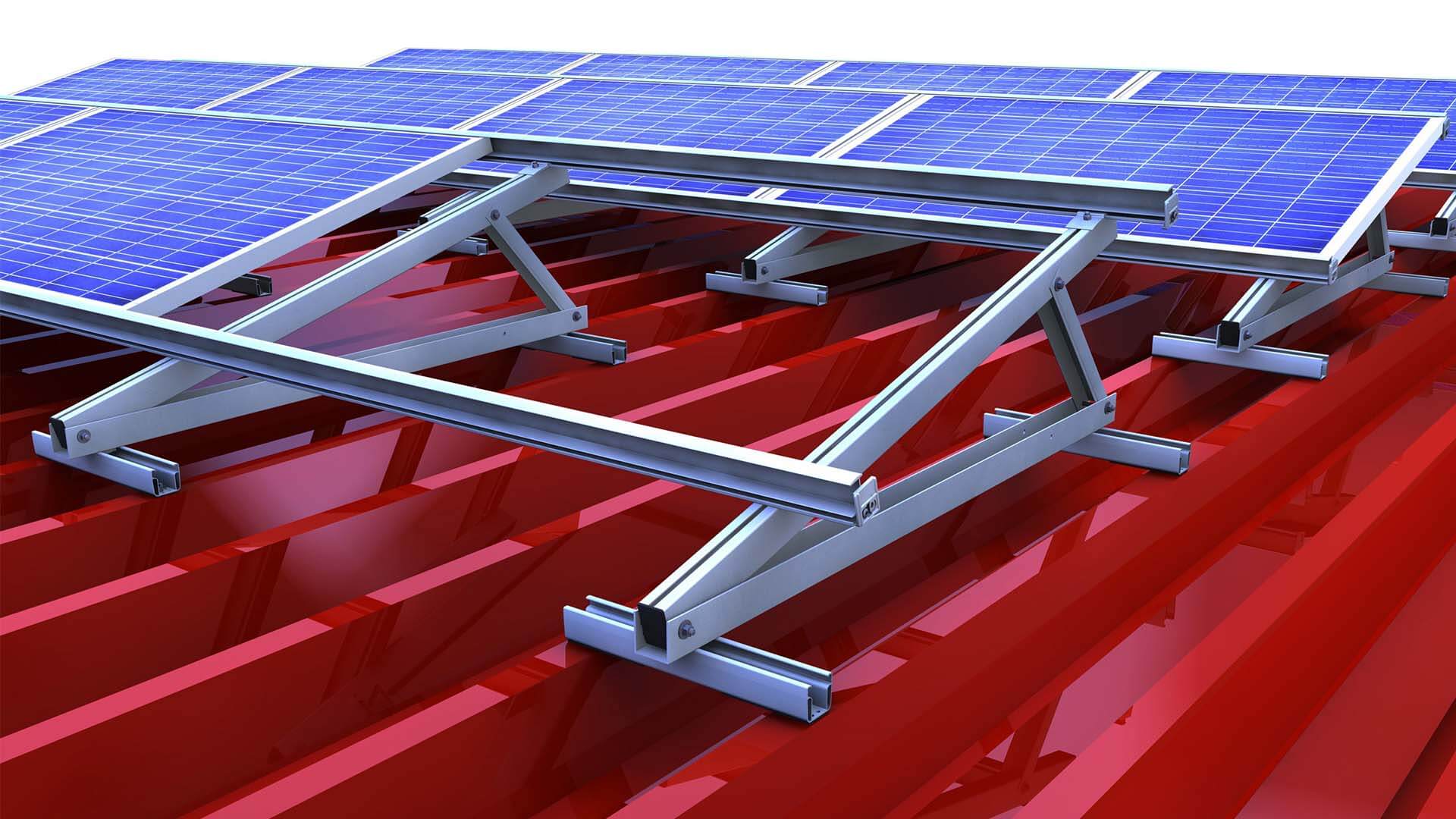

Insertion system: South-facing with triangle on east-west roof
Insertion system: South-facing with triangle on east-west roof
Downloads
More information about the trapezoidal mounting system
Would you like a little more? With our new elevation on trapezoidal sheet metal, you can answer this question with "yes", because the 5° elevation angle increases the module efficiency compared to roof-parallel mounting with short profiles. This solution is therefore particularly suitable for very flat trapezoidal sheet metal roofs and also ensures a better self-cleaning effect and increased rear ventilation of the modules. All other advantages of the short profiles, such as low material costs and easy handling, the high holding forces thanks to chipless direct fastening with thin sheet metal screws approved by the building authorities, as well as the use of only one installation tool, are also retained.
The short profiles can be used flexibly on all trapezoidal sheet metal beading grids and are available in two different heights. With the C24 short profile, you get a material-saving and economical solution for your projects. Or you can use the short profile C47 and get an ideal module rear ventilation through sufficient space to the roof covering. No matter what you decide, with our short profile variants you always make the right choice!
