PV mounting system for tile roof

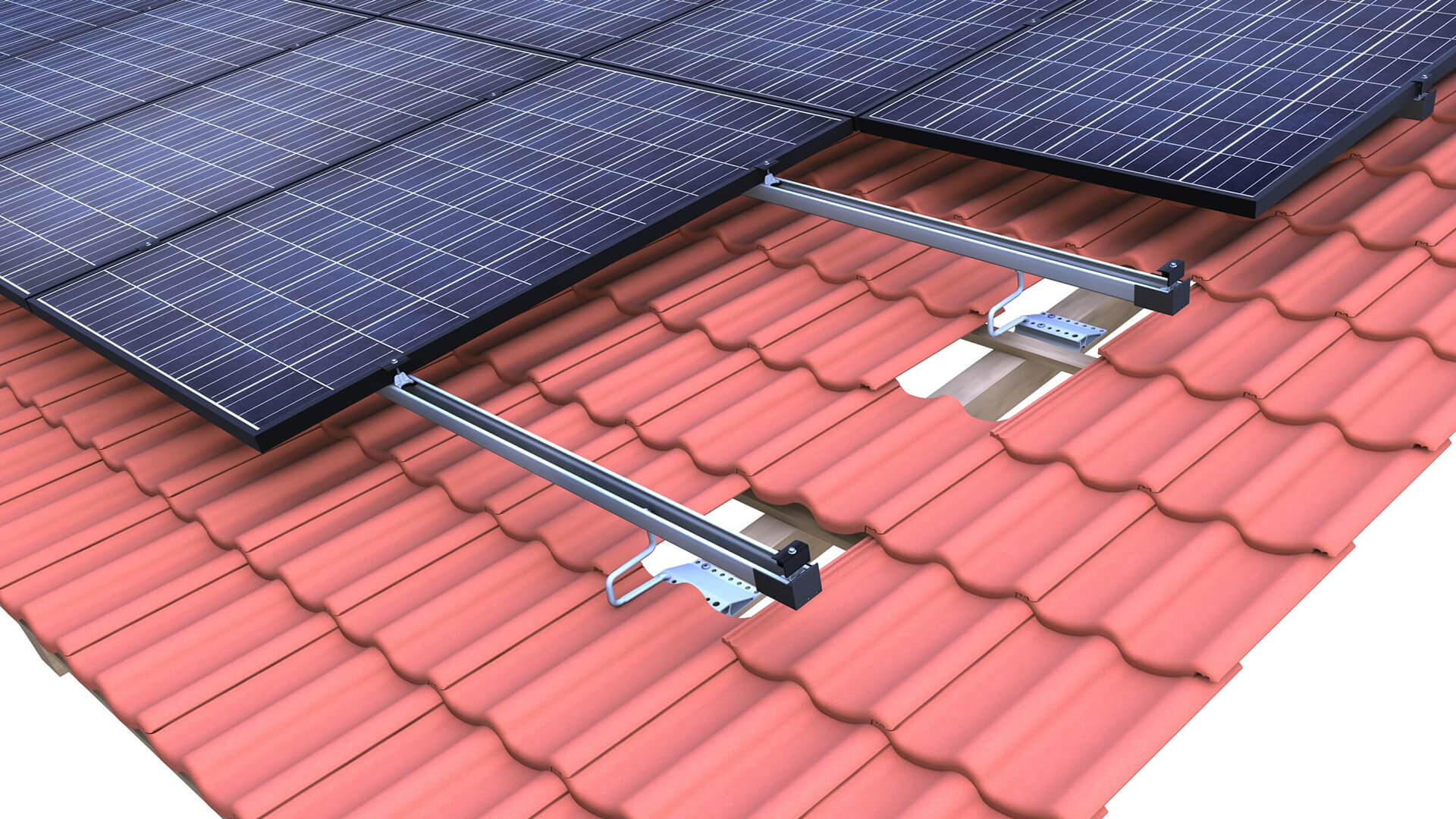

Clamping system - Powerful, stable and flexible

Our systems – your choice! The versions with the short rail C24 and C47 are easy to handle on site thanks to their preassembled components. Or you might decide on the C-rail assembly. Then you’ll get neat cable routing and a load-distributing connection to the trapezoidal sheet. Our clamping systems for modules in portrait meet every requirement.



Clamping system

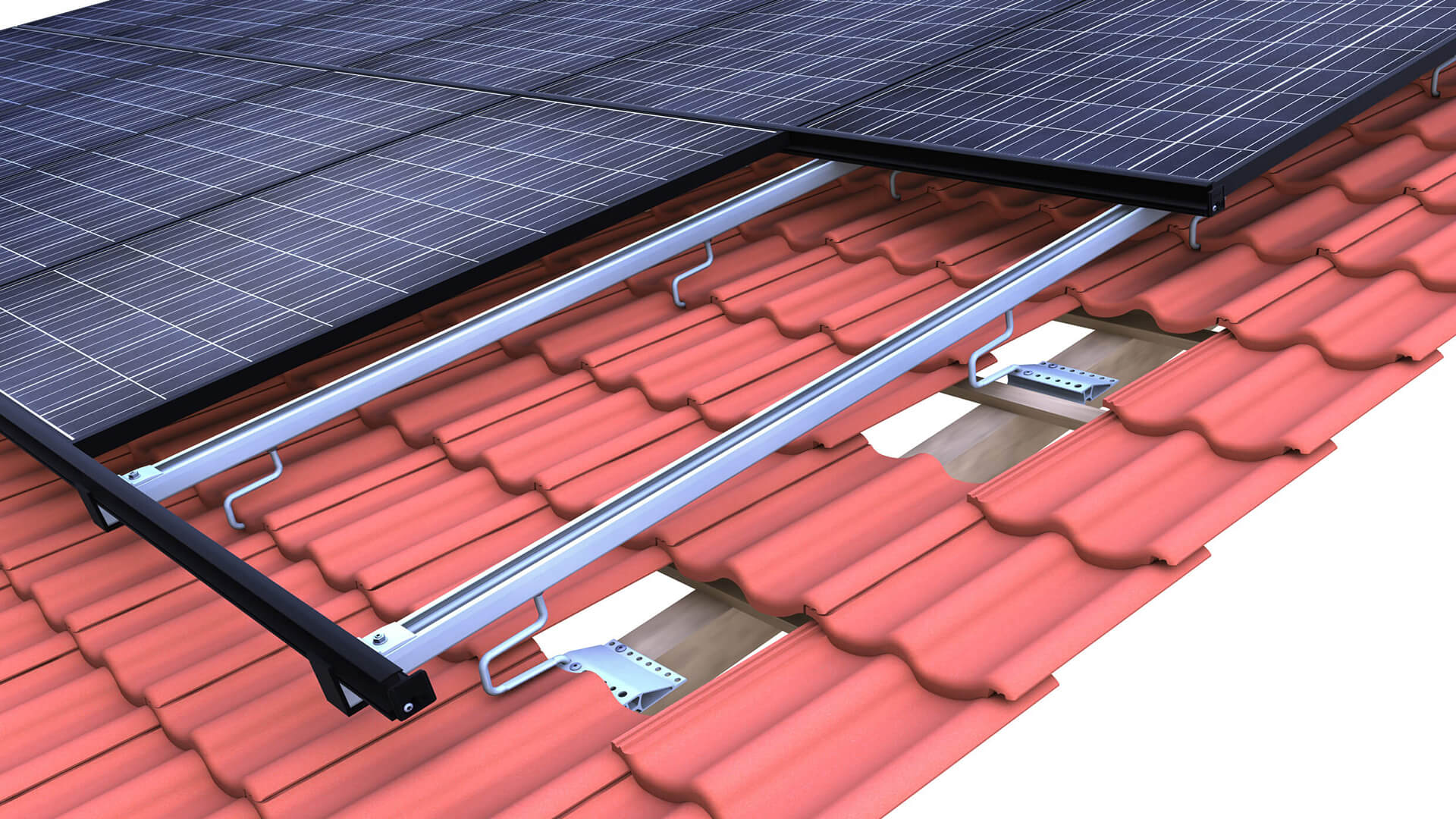

Insertion system - position, insert, finished!

Simple and elegant – our insertion system for tile roofs. Precisely adjust the substructure to your roof, and you will have a visually perfect PV installation thanks to the insertion system. The insertion rails are available in either blank aluminium or black to match the frame colour, and the thought-through technology ensures security and mounting efficiency.



Insertion system

Tile roof mounting system

Clamping system top-fix

Powerful, stable and flexible

Clamping system side-fix

Quick and easy fixing!

Insertion system top-fix

Position, insert – finished!

Insertion system side-fix

Powerful, stable and attractive!
