System details

Metal sheet facade | Insertion system trapezoidal bracket

Direct fixing to trapezoidal metal facades

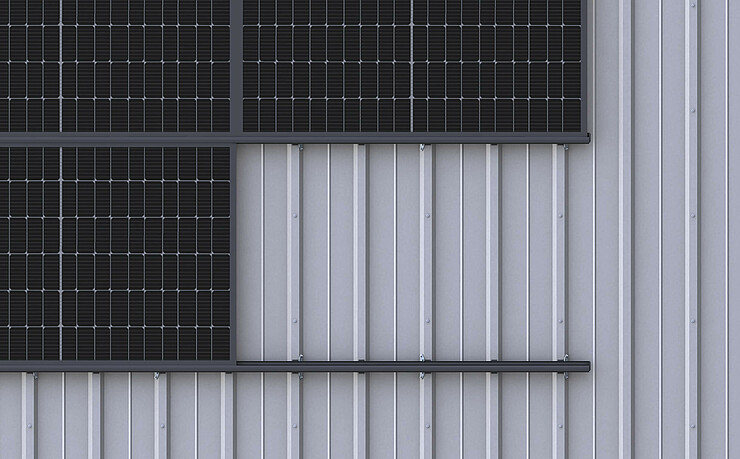

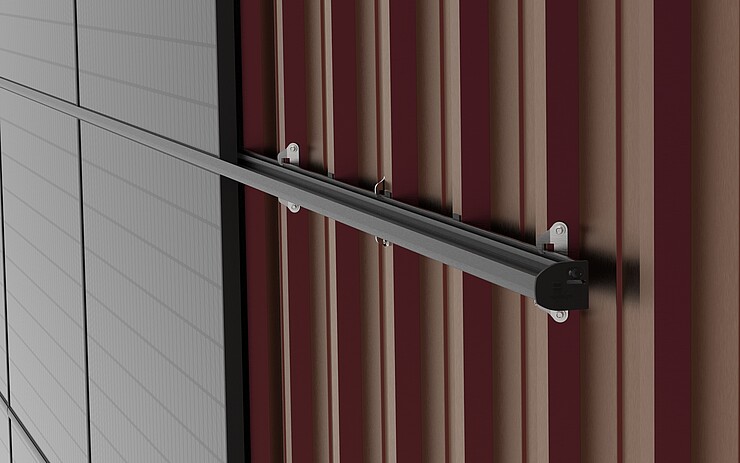

insertion rail is held by trapezoidal brackets on the facade
fixing of the trapezoidal bracket with thin sheet screws on the side of the high bead
module vertical and horizontal mounting possible
quick planning in Solar-Planit incl. static verification

Plan your project

Your benefits

creates modern, visually attractive facades

only a handful of components, entirely preassembled

high holding forces thanks to chipless direct fixing with building authority-approved thin sheet screws

a construction with excellent rear ventilation which hangs in front of the building but does not touch it

Components

Click on the + Icons to see components of this mounting system.

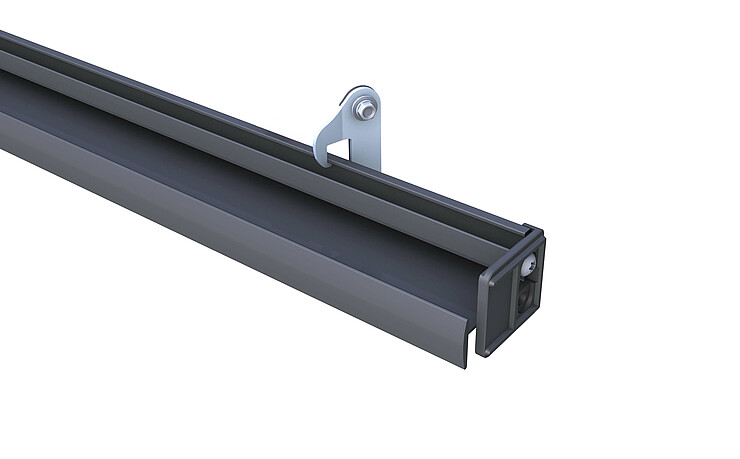

Trapezoidal sheet bracket IR 40×126mm

For fixing insertion rails for framed or frameless modules on trapezoidal sheet

entirely preassembled
lateral attachment to the raised bead

Buy now

Features

Roof type:
trapezoidal metal roof

Load capacity:
high

Compatible profile rails:
insertion rail

Dimensions:
126x40mm

For bead heights from:
25mm

Product number:
03-000459

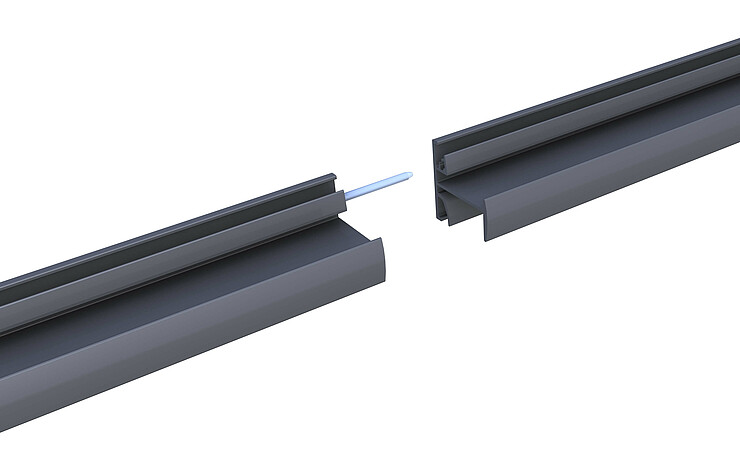

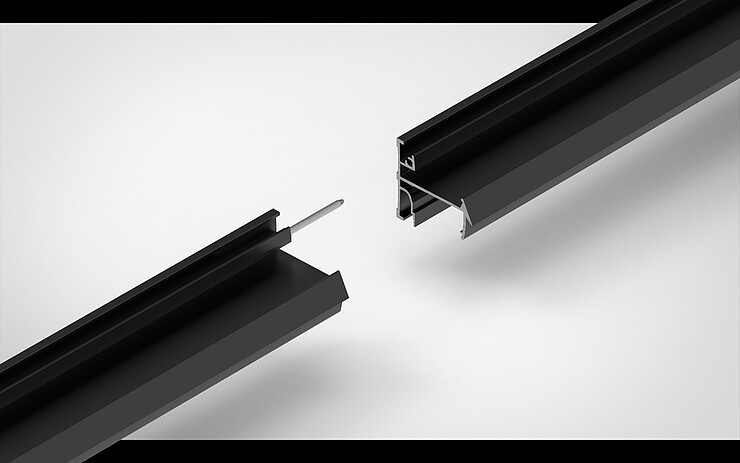

Insertion rails

high-end installation aesthetics
time-efficient mounting
tension-free and floating module mounting

Buy now

Features

Mounting type:
insertion system

Module assembly:
portrait & landscape, as cross rail connection or as special assembly

Compatible profile rails:
C-rail/C-N-rail/N-rail/short profiles landscape

Module frame height:
30-50mm

Lengths:
5.40m-all/2.20m (35mm + 40mm)

Available in black:
yes

Product number:
03-001417/03-001380/03-001379/03-001416/03-001388/03-001374/03-001378/03-001375

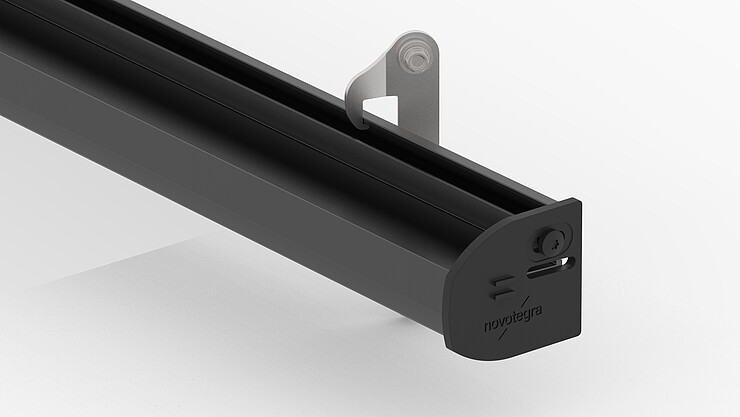

Edge stop IR

For optically tidy rail ends

optically tidy rail ends
color-coordinated with the insertion rail
prevents modules from slipping out

Buy now

Features

Mounting type:
insertion system

Mounting tool:
Torx 30

Compatible with:
insertion rail

Dimensions:
49x49mm

Available in black:
yes

Product number:
03-000691/03-000693

Accessories

Cable clip d=10mm

Downloads

Data sheets

Data sheet | metal facade | trapezoidal bracket EN

Mounting instructions

Mounting instruction | metal sheet facade EN

Module recommendation

Module recommendation facade systems

Manufacturer: Aleo Solar, Bauer Solar (AbZ/DIBt), Canadian Solar, EXE Solar, Meyer Burger, SoliTek (AbZ/DIBt), SoLuxTec, Solyco, SunPower Maxeon, SOLARWATT

The values for wind and snow loads (Pa) can be found in the module manufacturer's installation instructions. The load values must be checked individually for each module type. The modules are attached to the short side of the frame using four module clamps. This is a point mounting without continuous substructure rails.

Note: In Germany, modules used in overhead and façade installations require a general building authority approval (AbZ/DIBt).
