System details

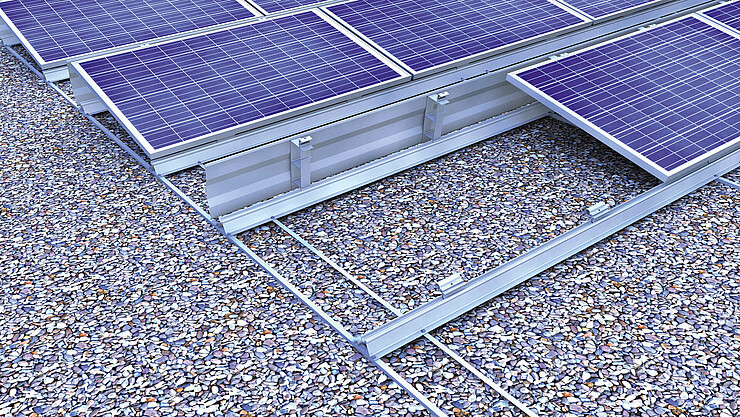

Flat roof I double-layer « the rock »
Our solution for east-west or south direction
- Optimum elevation angle 13° for good efficieny and self-cleaning
- Cross connections at module field edges for high stability
- High flexibility thanks to individually selectable row distance
- Connected module fields up 34 m length possible
Your benefits
Your benefits
Wind-tunnel tested aerodynamics
Wide and continuous base trough for good load redistribution to prevent damage on the roof insulation
Stability and flexibility thanks to cross layer system and module clamping in the optimum clamping range
Suitable for wide modules
Components

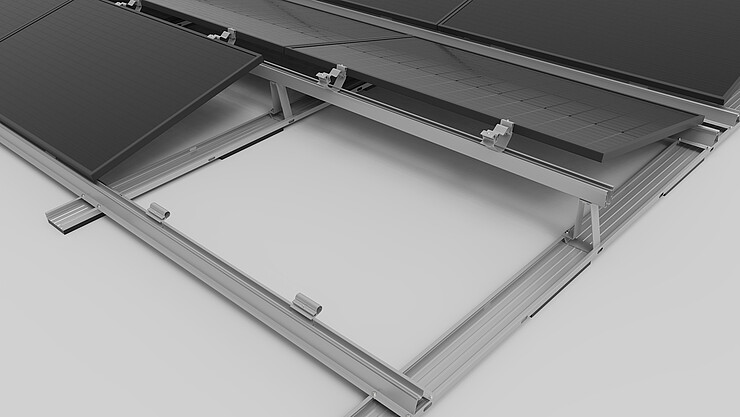

Components east-west system
Components east-west system
Click on the + Icons to see components of this mounting system.
Module bracket back | East-west system
Module support for flat roof cross-layer system
- to clip into the C-rail
- entirely pre-assembled
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west single-layer system
flat roof east-west single-layer system
Application field:
rear module support, clamping long frame side via module frame hole
rear module support, clamping long frame side via module frame hole
Module frame height:
28-33mm, 34-42mm, 43-52mm
28-33mm, 34-42mm, 43-52mm
Dimensions:
159x52mm
159x52mm
Product number:
03-000098;03-000322
03-000098;03-000322
Module bracket back mounting hole
Rear module support for flat roof cross-layer system
- to connect to the module frame holes
- entirely pre-assembled
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Application field:
rear module support, clamping long frame side via module frame hole
rear module support, clamping long frame side via module frame hole
Module frame height:
all
all
Dimensions:
65x8x4mm
65x8x4mm
Product number:
03-000061
03-000061
Module bracket front mounting hole
Front module support for elevation with base profile to the module frame holes
- for connection via the existing module frame hole
- entirely pre-assembled
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
Flat roof system I east-west & south
Flat roof system I east-west & south
Application field:
front module support, clamping long frame side via module frame hole
front module support, clamping long frame side via module frame hole
Module frame height:
all
all
Dimensions:
100x8x4mm
100x8x4mm
Product number:
03-000078
03-000078

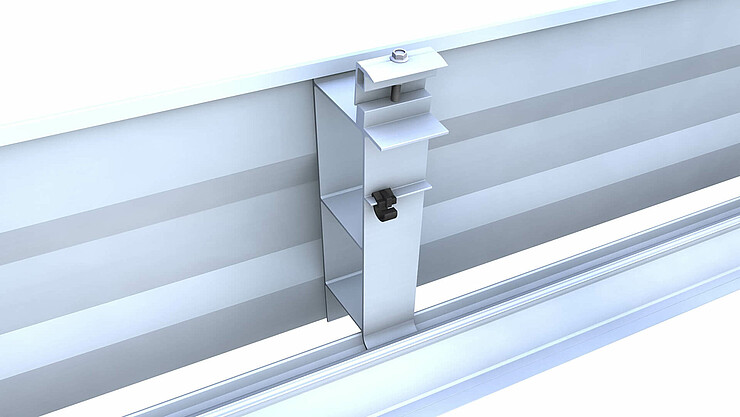

Module support flat roof cross-layer system
Module support for fixed elevation of modules at an angle of 13° and to connect the wind deflector 13° on it
- entirely pre-assembled incl. module clamp
- aerodynamic connection of wind deflector 13°
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof south cross-layer system
flat roof south cross-layer system
Application field:
rear module support
rear module support
Module frame height:
28-33mm, 34-42mm, 43-52mm
28-33mm, 34-42mm, 43-52mm
Dimensions:
255x50mm
255x50mm
Product number:
03-000330/03-000030/03-000031
03-000330/03-000030/03-000031

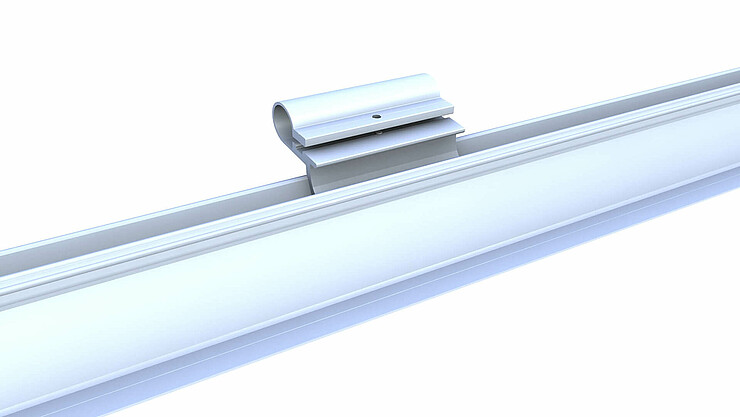

Base profile
Module support rail for module elevation on flat roofs
- high system stability through the construction of a cross-rail system
- for cross connection and load redistribution
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west single-layer system, flat roof south cross-layer system, elevation on pitched roofs
flat roof east-west single-layer system, flat roof south cross-layer system, elevation on pitched roofs
Application field:
cross rail connection with flat roof base trough
cross rail connection with flat roof base trough
Dimensions:
130x67x27mm
130x67x27mm
Lengths:
3.37m/5.06m/6.12m
3.37m/5.06m/6.12m
Product number:
03-000195;03-000194;03-000193
03-000195;03-000194;03-000193
Base profile connector
To extend the base profile
- internal connector for maximum assembly freedom
Features
Load capacity:
high
high
Compatible with:
flat roof east-west cross-layer system, flat roof south cross-layer system
flat roof east-west cross-layer system, flat roof south cross-layer system
Application field:
connection of base profile with length up to max. 17m
connection of base profile with length up to max. 17m
Dimensions:
41x68mm
41x68mm
Lengths:
380mm
380mm
Product number:
03-000021
03-000021
Base profile expansion joint
Expansion joint for thermal decoupling of base profiles
- connected module fields up 34m length possible
Features
Load capacity:
high
high
Compatible with:
flat roof east-west cross-layer system, flat roof south cross-layer system
flat roof east-west cross-layer system, flat roof south cross-layer system
Application field:
connection of base profile with length up to max. 34m
connection of base profile with length up to max. 34m
Dimensions:
41x68x80mm
41x68x80mm
Lengths:
380mm
380mm
Product number:
03-000129
03-000129
Module support set east-west 150 | East-west system
Module support for flat roof cross-layer system east-west for placement and fixing of the C-rail
- fast fixing of the C-rail
- entirely pre-assembled
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west cross-layer system
flat roof east-west cross-layer system
Application field:
support of flat roof east-west cross-layer system with base trough 150-30
support of flat roof east-west cross-layer system with base trough 150-30
Dimensions:
180x50x50mm
180x50x50mm
Product number:
03-000180
03-000180
Module support set east-west 230 | East-west system
Module support for flat roof cross-layer system east-west for placement and fixing of the C-rail
- fast fixing of the C-rail
- entirely pre-assembled
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof east-west cross-layer system
flat roof east-west cross-layer system
Application field:
support east-west cross-layer system with base trough 230-90
support east-west cross-layer system with base trough 230-90
Dimensions:
180x50x60mm
180x50x60mm
Product number:
03-000181
03-000181
Wind deflector cross-layer system | South system
Wind deflector for flat roof cross-layer system closed for wind deflection and ballast reduction.
- aerodynamic design and easy instalallation
- for cross connection and load redistribution
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
flat roof south cross-layer system
flat roof south cross-layer system
Application field:
wind deflection and cross bracing
wind deflection and cross bracing
Dimensions:
330x23mm
330x23mm
Lengths:
2.35m
2.35m
Product number:
03-001464
03-001464
Base trough 230-90
For single layer system (flat roof I); for ballasting with existing gravel
- for convenient ballasting with existing gravel
- up to 32 kg ballast per rm base trough
Features
Roof type:
gravel roof
gravel roof
Protection layer:
none
none
Compatible with:
flat roof east-west cross-layer system, flat roof south cross-layer system
flat roof east-west cross-layer system, flat roof south cross-layer system
Application field:
base trough for gravel roof, ballasting with existing gravel
base trough for gravel roof, ballasting with existing gravel
Dimensions:
230x90x190mm
230x90x190mm
Length:
6.00m
6.00m
Product number:
03-000092
03-000092
Base trough 150-30
For flat roof systems I and II; without protection layer
- wide and continuous base troughs for optimum load redistribution and low surface pressure
- much space for ballast, optionally ballast trough available
- top cover when used as a cable channel
Features
Roof type:
gravel roof
gravel roof
Sealant strip:
none
none
Compatible with:
flat roof system II east-west and south (flat roof system I east-west and south)
flat roof system II east-west and south (flat roof system I east-west and south)
Application field:
base trough for gravel roof or as connecting rail for cross bracing
base trough for gravel roof or as connecting rail for cross bracing
Dimensions:
150x30x120mm
150x30x120mm
Lengths:
2.20m/6.00m
2.20m/6.00m
Product number:
03-001407;03-000087
03-001407;03-000087
Base trought 150-30 with protection layer 6mm
For flat roof system I and II; with protection layer
- wide and continuous base troughs for optimum load redistribution and low surface pressure
- much space for ballast, optionally ballast trough available
- top cover when used as a cable channel
Features
Roof type:
bitumen roof, foil roof, (gravel roof)
bitumen roof, foil roof, (gravel roof)
Protection layer:
continuous PE separating layer 6mm
continuous PE separating layer 6mm
Compatible with:
flat roof system II east-west and south (flat roof system I east-west and south)
flat roof system II east-west and south (flat roof system I east-west and south)
Application field:
bitumen roof and foil roof, with base trough parallel to the drainage direction
bitumen roof and foil roof, with base trough parallel to the drainage direction
Dimensions:
150x36x120mm
150x36x120mm
Lengths:
2.20m/6.00m
2.20m/6.00m
Product number:
03-001408;03-000989
03-001408;03-000989
Base troughs with cross drainage
For flat roof system I and II; with cross drainage
- wide and continuous base troughs for optimum load redistribution and low surface pressure
- much space for ballast, optionally ballast trough available
- top cover when used as a cable channel
Features
Roof type:
bitumen roof, foil roof, (gravel roof)
bitumen roof, foil roof, (gravel roof)
Protection layer:
PE pads 20mm in 610mm distance
PE pads 20mm in 610mm distance
Compatible with:
flat roof system II east-west and south (flat roof system I east-west and south)
flat roof system II east-west and south (flat roof system I east-west and south)
Application field:
bitumen roof and foil roof, with base trough across the drainage direction
bitumen roof and foil roof, with base trough across the drainage direction
Dimensions:
150x50x120mm
150x50x120mm
Lengths:
2.20m/6.00m
2.20m/6.00m
Product number:
03-001409;03-000879
03-001409;03-000879
Base trough connector set 150-30
Rail connector to extend base troughs
- internal connector for maximum assembly freedom
Features
Load capacity:
high
high
Compatible with:
flat roof system II east-west and south (flat roof system I east-west and south)
flat roof system II east-west and south (flat roof system I east-west and south)
Application field:
connection of base trough 150-30 up to max. 17m length
connection of base trough 150-30 up to max. 17m length
Dimensions:
16x26mm
16x26mm
Length:
380mm
380mm
Product number:
03-000370
03-000370
Base trough expansion joint 150-30
For connection of two base troughs
- connected module fields up 34 m length possible
Features
Load capacity:
high
high
Compatible with:
flat roof system II east-west and south (flat roof system I east-west and south)
flat roof system II east-west and south (flat roof system I east-west and south)
Application field:
connection of base trough 150-30 up to max. 34m length
connection of base trough 150-30 up to max. 34m length
Dimensions:
150x25mm
150x25mm
Length:
380mm
380mm
Product number:
03-000128
03-000128
C-rail 71-2
For use as a module support rail, as a cross rail or as cable channel
- also acts as a cable channel
- can be stepped on throughout installation
- big cantilever possible
Features
Rail type:
can be used as module support rail, cross rail or cable channel
can be used as module support rail, cross rail or cable channel
Load capacity:
very high
very high
Compatible roof attachments:
roof hook top-fix, stock screw, seam clamps
roof hook top-fix, stock screw, seam clamps
Compatible module attachments:
module clamps, insertion rails
module clamps, insertion rails
Dimensions:
52x71mm/2mm rail bottom
52x71mm/2mm rail bottom
Length:
5.90 m
5.90 m
Available in black:
no
no
Product number:
03-001371
03-001371
Rail connector set C71
Rail connector to extend C-rails
- safe connection of two C-rails
- available as expansion joint construction
Features
Load capacity:
high
high
Compatible with:
C-rail 47-2
C-rail 47-2
Dimensions:
52x50mm/hole spacing 67mm
52x50mm/hole spacing 67mm
Length:
325mm
325mm
Variants:
expansion joint
expansion joint
Product number:
03-000151
03-000151
Downloads
Downloads
References
