System details
Tile roof | top-fix
Direct mounting with clamps or insertion system
- 3-way adjustable roof hook to compensate for uneven roofs, for different tile thicknesses and shapes
- Centric load distribution
- Narrow tile penetration, minimal tile processing
- Large overhang of the base profile on rafters possible without additional lateral shimming

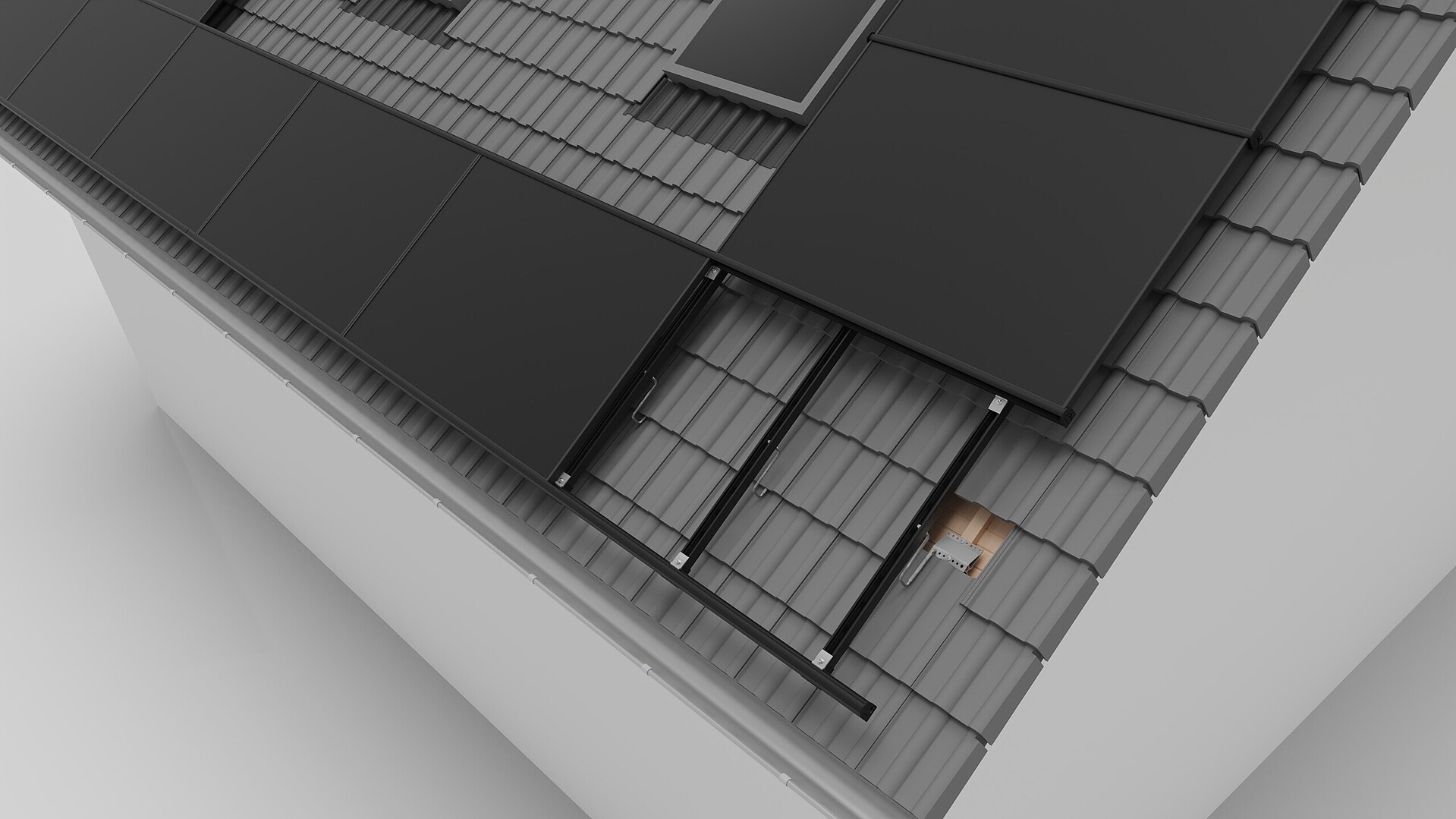

- Cross and drop rail mounting possible with the same components
- Use of novotegra multifit components
Advantages clamping system
- Cost-effective, quick installation
- C-rail can be walked on during installation
- Flush termination of the clamps at the end of the rail
Advantages insertion system
- Floating, tension-free module mounting without tools

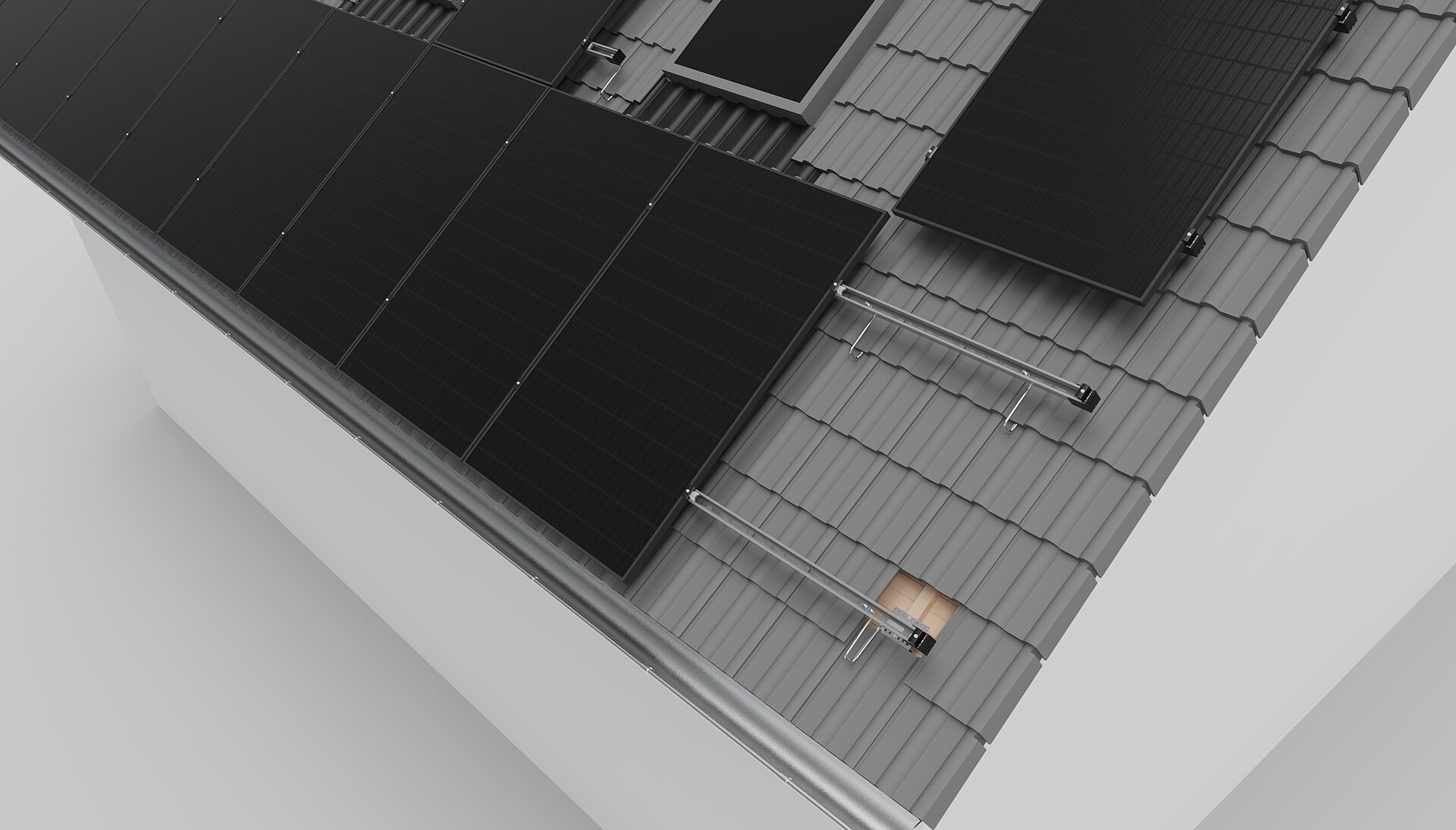

- Easy combination of portrait and horizontal mounting possible
- High-quality system appearance and quick installation
References
Downloads
Downloads
Data collection sheets
Data sheets
Mounting instructions
Components
Components
Components
Click on the + Icons to see components of this mounting system.
Roof hook flex 18/30/40
Stable and flexible solution for your tiled roof
- three-way adjustable
- centric load distribution
- narrow tile gap
Features
Tile type:
clay tiles, concrete tiles, beavertail tiles
clay tiles, concrete tiles, beavertail tiles
Load capacity:
medium
medium
Compatible profile rails:
C-rail as horizontal rail or vertical rail
C-rail as horizontal rail or vertical rail
Height of battens:
18-24/24-30/31-40mm
18-24/24-30/31-40mm
Width of rafters:
min. 36mm
min. 36mm
Rafter insulation:
no
no
Product number:
03-001109;03-001150;03-001151
03-001109;03-001150;03-001151
Roof hook ZD 30/40
Roof hooks for mounting C-rails
- three-way adjustable
- centric load distribution
- narrow tile gap
Features
Tile type:
clay tiles, concrete tiles
clay tiles, concrete tiles
Load capacity:
high
high
Compatible profile rails:
C-rail as horizontal rail or vertical rail
C-rail as horizontal rail or vertical rail
Height of battens:
24-30/31-40mm
24-30/31-40mm
Width of rafters:
min. 48mm
min. 48mm
Rafter insulation:
yes
yes
Product number:
03-000254;03-000256
03-000254;03-000256
Roof hook ZD 30/40 long
Roof hook for large tile covering
- three-way adjustable
- centric load distribution
- narrow tile gap
Features
Tile type:
clay tiles, concrete tiles
clay tiles, concrete tiles
Load capacity:
high
high
Compatible profile rails:
C-rail as horizontal rail or vertical rail
C-rail as horizontal rail or vertical rail
Height of battens:
24-30/31-40mm
24-30/31-40mm
Width of rafters:
min. 48mm
min. 48mm
Rafter insulation:
yes
yes
Product number:
03-001723;03-001725
03-001723;03-001725
Double roof hook flex 30/40
Stable and flexible solution for your tile roof
- three-way adjustable
- centric load distribution
- narrow tile gap
Features
Tile type:
clay tiles, concrete tiles, beavertail tiles
clay tiles, concrete tiles, beavertail tiles
Load capacity:
high
high
Compatible profile rails:
C-rail as horizontal rail
C-rail as horizontal rail
Height of battens:
24-30/31-40mm
24-30/31-40mm
Width of rafters:
min. 36mm
min. 36mm
Rafter insulation:
no
no
Product number:
03-001150
03-001150
Double roof hook ZD 30/40
Roof hooks for mounting C-rails, optimised for heavy loads
- three-way adjustable
- centric load distribution
- narrow tile gap
Features
Tile type:
clay tiles, concrete tiles
clay tiles, concrete tiles
Load capacity:
extremely high
extremely high
Compatible profile rails:
C-rail as horizontal rail
C-rail as horizontal rail
Height of battens:
24-30/31-40mm
24-30/31-40mm
Width of rafters:
min. 48mm
min. 48mm
Rafter insulation:
yes
yes
Product number:
03-000255;03-000257
03-000255;03-000257
Double roof hook ZD 30/40 long
Roof hook for large tile covering, optimised for heavy loads
- three-way adjustable
- centric load distribution
- narrow tile gap
Features
Tile type:
clay tiles, concrete tiles
clay tiles, concrete tiles
Load capacity:
extremely high
extremely high
Compatible profile rails:
C-rail as horizontal rail
C-rail as horizontal rail
Height of battens:
24-30/31-40mm
24-30/31-40mm
Width of rafters:
min. 48mm
min. 48mm
Rafter insulation:
yes
yes
Product number:
03-001726
03-001726
Double roof hook BS 30
Roof hooks for mounting C-rails on roofs with beavertail
- three-way adjustable
- centric load distribution
- narrow tile gap
Features
Tile type:
beavertail tiles
beavertail tiles
Load capacity:
extremely high
extremely high
Compatible profile rails:
C-rail as horizontal rail
C-rail as horizontal rail
Height of battens:
24-30mm
24-30mm
Width of rafters:
min. 48mm
min. 48mm
Rafter insulation:
yes
yes
Product number:
03-000267
03-000267
Roof hook BS 30
Roof hooks for mounting C-rails on roofs with beavertail tiles
- three-way adjustable
- centric load distribution
- narrow tile gap
Features
Tile type:
beavertail tiles
beavertail tiles
Load capacity:
high
high
Compatible profile rails:
C-rail as horizontal rail or vertical rail
C-rail as horizontal rail or vertical rail
Height of battens:
24-30mm
24-30mm
Width of rafters:
min. 48mm
min. 48mm
Rafter insulation:
yes
yes
Product number:
03-000258
03-000258
Features
Roof hook types:
flex 18/30/40, ZD 633
flex 18/30/40, ZD 633
Material:
steel galvanized (alternative V2A)
steel galvanized (alternative V2A)
Dimensions:
Ø 6mm x lengths
Ø 6mm x lengths
Lengths:
30mm, 60mm, 90mm, 120mm, 150mm
30mm, 60mm, 90mm, 120mm, 150mm
Roof hook mounting screws 8mm
Building authority-approved
- building authority-approved
- fits also for rafter insulation
Features
Roof hook types:
ZD 30/40, BS 30, ZD 30 N35, ZD 533, ZD 544
ZD 30/40, BS 30, ZD 30 N35, ZD 533, ZD 544
Material:
steel galvanized
steel galvanized
Dimensions:
Ø 8mm x length
Ø 8mm x length
Lengths:
100mm, 140mm, 180mm, 220mm, 260mm, 300mm, 340mm
100mm, 140mm, 180mm, 220mm, 260mm, 300mm, 340mm
C-rail 38-1,6
For use as a module support rail, as a cross rail or as cable channel
- also acts as a cable channel
Features
Rail type:
can be used as module support rail, cross rail or cable channel
can be used as module support rail, cross rail or cable channel
Load capacity:
medium
medium
Compatible roof attachments:
roof hook top-fix, stock screw, seam clamps
roof hook top-fix, stock screw, seam clamps
Compatible module attachments:
module clamps, insertion rails
module clamps, insertion rails
Dimensions:
52x38mm/1.6mm rail bottom
52x38mm/1.6mm rail bottom
Lengths:
2.20 m/5.90 m
2.20 m/5.90 m
Available in black:
yes
yes
Product number:
03-001362;03-001364;03-001365
03-001362;03-001364;03-001365
C-rail 47-2
For use as a module support rail, as a cross rail or as cable channel
- also acts as a cable channel
- can be stepped on throughout installation
- big cantilever possible
Features
Rail type:
can be used as module support rail, cross rail or cable channel
can be used as module support rail, cross rail or cable channel
Load capacity:
high
high
Compatible roof attachments:
roof hook top-fix, stock screw, seam clamps
roof hook top-fix, stock screw, seam clamps
Compatible module attachments:
module clamps, insertion rails
module clamps, insertion rails
Dimensions:
52x47mm/2mm rail bottom
52x47mm/2mm rail bottom
Lengths:
2.20 m/2.40 m/3.60 m/4.80 m/5.90 m
2.20 m/2.40 m/3.60 m/4.80 m/5.90 m
Available in black:
yes
yes
Product number:
03-001366;03-001367;03-001441;03-001368;03-001369;03-001370
03-001366;03-001367;03-001441;03-001368;03-001369;03-001370
C-rail 71-2
For use as a module support rail, as a cross rail or as cable channel
- also acts as a cable channel
- can be stepped on throughout installation
- big cantilever possible
Features
Rail type:
can be used as module support rail, cross rail or cable channel
can be used as module support rail, cross rail or cable channel
Load capacity:
very high
very high
Compatible roof attachments:
roof hook top-fix, stock screw, seam clamps
roof hook top-fix, stock screw, seam clamps
Compatible module attachments:
module clamps, insertion rails
module clamps, insertion rails
Dimensions:
52x71mm/2mm rail bottom
52x71mm/2mm rail bottom
Length:
5.90 m
5.90 m
Available in black:
no
no
Product number:
03-001371
03-001371
C-rail 95-3
For use as a module support rail, as a cross rail or as cable channel
- also acts as a cable channel
- can be stepped on throughout installation
- big cantilever possible
Features
Rail type:
can be used as module support rail, cross rail or cable channel
can be used as module support rail, cross rail or cable channel
Load capacity:
extremly high
extremly high
Compatible roof attachments:
roof hook top-fix, stock screw, seam clamps
roof hook top-fix, stock screw, seam clamps
Compatible module attachments:
module clamps, insertion rails
module clamps, insertion rails
Dimensions:
52x95mm/3mm rail bottom
52x95mm/3mm rail bottom
Length:
5.90 m
5.90 m
Available in black:
no
no
Product number:
03-001372
03-001372
Rail connector sets
Rail connector to extend C-rails
- safe connection of two C-rails
- available as expansion joint construction
Features
Load capacity:
high
high
Compatible with:
C-rail 38, 47, 71, 95
C-rail 38, 47, 71, 95
Dimensions:
52x40mm/hole spacing 50mm
52x40mm/hole spacing 50mm
Length:
325mm
325mm
Variants:
expansion joint
expansion joint
Rail connector set C47 S
Rail connector to extend C-rails
- safe connection of two C-rails
- internal connector for maximum assembly freedom
Features
Load capacity:
high
high
Compatible with:
C-rail 47-2
C-rail 47-2
Dimensions:
30mm
30mm
Length:
200mm
200mm
Variants:
-
-
Product number:
03-000925
03-000925
End cap C38
Fast, strong and permanently reliable connection
- visually attractive rail finish
- UV- and weather resistant
Features
Mounting type:
clamping system
clamping system
Mounting tool:
not necessary
not necessary
Compatible with:
C-rail 38
C-rail 38
Variants:
C47 sw
C47 sw
Dimensions:
57x54x80mm
57x54x80mm
Product number:
03-001523
03-001523
End cap C-rail C47
Fast, strong and permanently reliable connection
- visually attractive rail finish
- UV- and weather resistant
Features
Mounting type:
clamping system
clamping system
Mounting tool:
not necessary
not necessary
Compatible with:
C-rail 47
C-rail 47
Dimensions:
57x63x80mm
57x63x80mm
Variants:
End cap C38 sw
End cap C38 sw
Product number:
03-001522
03-001522
Middle clamp blank/black
For attaching modules in installation middle areas
- easy to mount thanks to locking function
- little space required
Features
Mounting type:
clamping system
clamping system
Module assembly:
portrait & landscape, single-layer or cross rail connection (depending on the roof type)
portrait & landscape, single-layer or cross rail connection (depending on the roof type)
Compatible profile rails/systems:
C-rail/ C-N-rail, short rails, Flat roof III
C-rail/ C-N-rail, short rails, Flat roof III
Module frame height:
30-42mm/43-52mm
30-42mm/43-52mm
Dimensions:
11.4mmx52mm
11.4mmx52mm
Available in black:
yes
yes
Product number:
03-001345/03-001346/03-000285/03-000286
03-001345/03-001346/03-000285/03-000286
End clamp blank/black
For attaching modules at installation edges.
- easy to mount thanks to locking function
- little space required
- flush termination with the rail possible
Features
Mounting type:
clamping system
clamping system
Module assembly:
portrait & landscape, single-layer or cross rail connection
portrait & landscape, single-layer or cross rail connection
Compatible profile rails:
C-rail/ C-N-rail, short rails, Flat roof III
C-rail/ C-N-rail, short rails, Flat roof III
Module frame height:
30-42mm/43-52mm
30-42mm/43-52mm
Dimensions:
14mmx52mm
14mmx52mm
Available in black:
yes
yes
Product number:
03-001237/03-001236/03-000287/03-000288
03-001237/03-001236/03-000287/03-000288
Slip guard
For modules installed in portrait with clamping systems
- mounting aid for placing the modules
- additional securing of modules
Features
Mounting type:
clamping system
clamping system
Module assembly:
portrait
portrait
Compatible with:
C-rail/C-N-rail/N-rail/module support rail green roof
C-rail/C-N-rail/N-rail/module support rail green roof
Module frame hole:
M8, M6, without hole
M8, M6, without hole
Dimensions:
25mm
25mm
Product number:
03-000006/03-000007
03-000006/03-000007
Slip guard set C-rail
For optically tidy rail ends or as slip guard
- mounting aid for placing the modules
- additional securing of modules
Features
Mounting type:
clamping system
clamping system
Module assembly:
landscape
landscape
Compatible with:
C-rail (as vertical rail)
C-rail (as vertical rail)
Dimensions:
53mmx80mmx80/100/130mm
53mmx80mmx80/100/130mm
For C-rail:
C47-2/C71-2/C95-3
C47-2/C71-2/C95-3
Available in black:
yes
yes
Product number:
03-000259/03-000260/03-000261/03-000262/03-000263/03-000264
03-000259/03-000260/03-000261/03-000262/03-000263/03-000264
Insertion rails
- high-end installation aesthetics
- time-efficient mounting
- tension-free and floating module mounting
Features
Mounting type:
insertion system
insertion system
Module assembly:
portrait & landscape, as cross rail connection or as special assembly
portrait & landscape, as cross rail connection or as special assembly
Compatible profile rails:
C-rail/C-N-rail/N-rail/short profiles landscape
C-rail/C-N-rail/N-rail/short profiles landscape
Module frame height:
30-50mm
30-50mm
Lengths:
5.40m-all/2.20m (35mm + 40mm)
5.40m-all/2.20m (35mm + 40mm)
Available in black:
yes
yes
Product number:
03-001417/03-001380/03-001379/03-001416/03-001388/03-001374/03-001378/03-001375
03-001417/03-001380/03-001379/03-001416/03-001388/03-001374/03-001378/03-001375
Rail connector set IR
To extend the insertion rails
- rail connector works as expansion joint construction at the same time
Features
Mounting type:
insertion system
insertion system
Mounting tool:
Hexagon key 3mm
Hexagon key 3mm
Compatible with:
insertion rail
insertion rail
Dimensions:
65x150mm
65x150mm
Available in black:
yes
yes
Product number:
03-000648/03-000499
03-000648/03-000499
Cross-rail connector IR on C or C-N
Connector for fixing insertion rails on C-rails or C-N-rails
- safe connection due to force and form closure
- completely pre-assembled
Features
Mounting type:
insertion system
insertion system
Mounting tool:
AF 13 hexagon drive
AF 13 hexagon drive
Compatible profile rails:
C-rail/C-N-rail/short profile landscape
C-rail/C-N-rail/short profile landscape
Dimensions:
50x66mm
50x66mm
Edge stop IR
For optically tidy rail ends
- optically tidy rail ends
- color-coordinated with the insertion rail
- prevents modules from slipping out
Features
Mounting type:
insertion system
insertion system
Mounting tool:
Torx 30
Torx 30
Compatible with:
insertion rail
insertion rail
Dimensions:
49x49mm
49x49mm
Available in black:
yes
yes
Product number:
03-000691/03-000693
03-000691/03-000693
Description
More information about the tile roof mounting system
Our roof hook sets from the novotegra family are ideal for roof attachment when mounting modules on tile roofs. The various sets consist of a base profile and a bracket which is screwed into the base profile. Because they are three-way adjustable, the roof hook sets are perfectly adaptable to any tile roof. This way you can always achieve a homogenous module field, even on uneven roofs. Whether you choose a large base profile with a second bracket for heavy snow loads or the flex roof hook set for light loads − we always have a simple, stable and flexible solution for your tile roof.
C-rails are always mounted using the same principle: The classic screw connection with a locking nut ensures a quick, strong and permanently reliable connection for both single-rail and cross-rail connections. At the same time, the interior of the rail acts as a cable channel with enough room for cables and plugs. All end and middle clamps are pre-assembled and also available in a black anodised variant. Be it vertically or horizontally installed modules or a single-rail or cross-rail installation, thanks to reliable clamping technology, modules can be attached to C-rails quickly and securely. The end clamps close the module field flush to the C-rails, making the substructure nearly invisible – for visually perfect installations.
