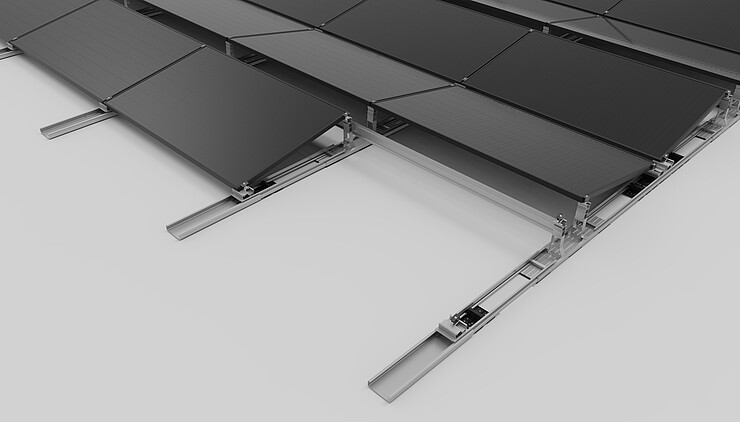

Flat roof system III "long side clamping"
Clamping on the long frame side of the modules for maximum loads
- Maximum utilisation of the roof surface and evenly distributed electricity production
- Efficient use of space thanks to 10° module inclination and landscape installation
- Cross connections at module field edges for high stability
Your benefits
Clamping of the module in the optimum area of the long frame side for maximum wind and snow loads, especially with large modules
Low logistical effort and optimal handling thanks to short components
Simple and quick installation due to high degree of pre-fabrication and tool-free click system
Wind tunnel tested aerodynamics
Components
Components
Click on the + Icons to see components of this mounting system.
Base element e/w 690 mm
- wide and continuous base troughs for optimum load redistribution and low surface pressure
- much space for ballast, optionally ballast trough available
- top cover when used as a cable channel
Features
Flat roof
Alu / A2SS / PE
Flat roof system III east-west
for click-fit of the module supports and connection of connector and edge closure sets
690 x 150 x 40 mm
995 - 1070 mm
03-001536
Base element e/w 840 mm
- Completely pre-assembled
- toolless clickfit of module supports
- toolless mounting of connector and edge closure sets
Features
Flat roof
Alu / A2SS / PE
Flat roof system III east-west
for click-fit of the module supports and connection of connector and edge closure sets
840 x 150 x 40 mm
1071 - 1145 mm
03-001537
Connector set e/w 1940 mm
- Completely pre-assembled with integrated base feet
- toolless mounting
Features
Flat roof
Alu / A2SS / PP
Flat roof system III east-west
connection of two base elements east-west, front module support in installation middle areas.
1940 x 147 x 101 mm
03-001533
Edge closure set 970 mm
- Completely pre-assembled with integrated base foot
- Toolless mounting
Features
Flat roof
Alu / A2SS / PP
Flat roof system III east-west
front module support and closure at module field edges
970 x 147 x 101 mm
03-001532
Position securing
- Minimizes the risk of damage to the building
- Universally applicable – even outside the module field
- Reduced force transmission thanks to spring-loaded connection
Features
Flat roof II, Flat roof III "the shortcut", Flat roof III "long side clamping"
03-001807
984 x 25 mm
Connecting module fields to anchors with vertical threaded rods in M 10 or M 12
Foil roof, bitumen roof
Flat roof end clamp
- screw with drill bit for easy assembly
- entirely pre-assembled
- only two clamps for all frame heights (can also be used in the novotegra Flat roof II system with third base trough)
Features
clamping system
landscape
flat roof system II east-west and south
clamping long frame side
30-42mm, 43-52mm
14x52mm
03-000396;03-000397
Support brace | Flat roof III
- load transfer between modules
- ballast reduction through system coupling
Features
2,00m, 2,40m
clamping system
landscape
flat roof east-west single-layer, flat roof III east-west
cross bracing of the system
20x20x1,5mm
03-001680; 03-001530
Module support 10° Long side
- tool-less clickfit into the base element
- with integrated holder for cable channel and mountingset optimizer FR
Features
Clamping system
Landscape
Flat roof III Long side
Rear module support
289 x 60 mm
03-001550
Accessories
Downloads
Module recommendation Flat roof III "long side clamping"
Manufacturer: Jinko Solar, REC Solar, Solyco, Trina Solar
The values for wind and snow loads (Pa) can be found in the module manufacturer's installation instructions. The modules are attached to the long side of the frame using four module clamps. The load values must be checked individually for each module type. This is a point mounting without continuous substructure rails.
Fall protection for flat roof system III
In order to ensure maximum safety and minimise dangers during the installation and maintenance of PV systems, we work together with three competent partners in the area of fall protection.
INNOTECH Arbeitsschutz GmbH and Solid-C offer the right components for attaching a fall protection system to the novotegra flat roof system II for the German and Austrian markets.
In Switzerland, we co-operate successfully with Repapress AG, which is the ideal partner for us as a manufacturer and provider of complete solutions in the field of fall protection.
