Tile roof | side-fix
Efficient side mounting with clamps and insertion system
- Roof hooks can still be adjusted after screwing to compensate for uneven roofs and for different tile thicknesses and shapes
- Quick installation thanks to click technology
- C-N rail also serves as a cable channel
- Cross and drop rail mounting with the same components possible
Advantages clamping system
- Cost-effective, quick installation
- CN-rail can be walked on during installation
- Flush termination of the clamps at the end of the rail
Advantages insertion system
- Floating, tension-free module mounting without tools
- Easy combination of portrait and horizontal mounting possible
- High-quality system appearance and quick installation
Downloads
Components
Components
Click on the + Icons to see components of this mounting system.

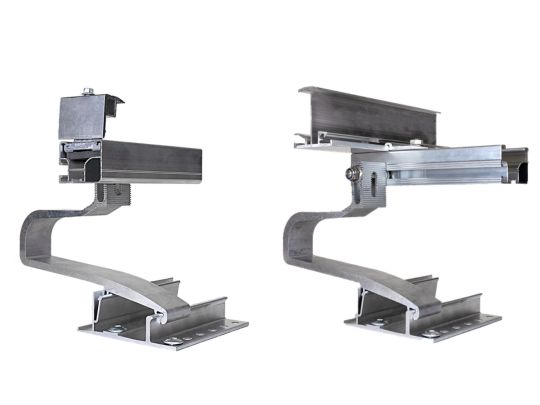

Roof hook ZD 30 N35 vertical
- quick roof hook installation through click technology
- roof hooks for large tile overlap up to approx. 11cm
Features
clay tiles, concrete tiles
high
C-N-rail or N-rail as vertical rail
30mm
min. 48mm
no
Roof hook ZD 30 N35 in landscape
- quick roof hook installation through click technology
- roof hooks for large tile overlap up to approx. 11cm
Features
clay tiles, concrete tiles
high
C-N-rail as horizontal rail
30mm
min. 48mm
no
03-001351
Roof hook ZD 533
- rail-roof hook connection height-adjustable
- easy to assemble connection from the side
Features
clay tiles, concrete tiles
medium
C-N-rail or N-rail as vertical rail
30mm
min. 48mm
no
03-000731
Roof hook ZD 544
- rail-roof hook connection height-adjustable
- easy to assemble connection from the side
Features
clay tiles, concrete tiles
medium
C-N-rail as horizontal rail
30mm
min. 48mm
no
03-000611
Features
flex 18/30/40, ZD 633
steel galvanized (alternative V2A)
Ø 6mm x lengths
30mm, 60mm, 90mm, 120mm, 150mm
Roof hook mounting screws 8mm
- building authority-approved
- fits also for rafter insulation
Features
ZD 30/40, BS 30, ZD 30 N35, ZD 533, ZD 544
steel galvanized
Ø 8mm x length
100mm, 140mm, 180mm, 220mm, 260mm, 300mm, 340mm
C-N-rail 60
- C-N-Rail usable as a cable channel
- Easy to mount from the side
- Available in different lengths
Features
can be used as module support rail or cross rail
high
roof hook side-fix
module clamps, insertion rails
52 x 60/ 1.8mm rail bottom
5,90 m
yes
C-N-rail 60 5,90 m: 03-001728; C-N-rail 60 5,90 m black: 03-001730
Rail connector C-N 60 S: 03-001731 (Length: 300 mm); Rail connector set C-N 60 S: 03-001729 (Length: 300 mm)
C-N-rail 37
- the C-N-rail also acts as a cable channel
- easy to assemble connection from the side
Features
can be used as module support rail, cross rail or cable channel
medium-high
roof hook side-fix
module clamps, insertion rails
52x37mm/1.6mm rail bottom
2.20m/5.40m
yes
03-001413;03-001328;03-001412
Rail connector set C-N 37 S
- internal connector for maximum assembly freedom
Features
medium-high
C-N-rail 37
250mm
-
03-001347
End cap C-N 37 sw
- visually attractive rail finish
- UV and weather resistant
Features
clamping/insertion system
not necessary
C-N rail 37
57x52x80mm
-
03-001343
Middle clamp blank/black
- easy to mount thanks to locking function
- little space required
Features
clamping system
portrait & landscape, single-layer or cross rail connection (depending on the roof type)
C-rail/ C-N-rail, short rails, Flat roof III
30-42mm/43-52mm
11.4mmx52mm
yes
03-001345/03-001346/03-000285/03-000286
End clamp blank/black
- easy to mount thanks to locking function
- little space required
- flush termination with the rail possible
Features
clamping system
portrait & landscape, single-layer or cross rail connection
C-rail/ C-N-rail, short rails, Flat roof III
30-42mm/43-52mm
14mmx52mm
yes
03-001237/03-001236/03-000287/03-000288
Slip guard
- mounting aid for placing the modules
- additional securing of modules
Features
clamping system
portrait
C-rail/C-N-rail/N-rail/module support rail green roof
M8, M6, without hole
25mm
03-000006/03-000007
Insertion rails
- high-end installation aesthetics
- time-efficient mounting
- tension-free and floating module mounting
Features
insertion system
portrait & landscape, as cross rail connection or as special assembly
C-rail/C-N-rail/N-rail/short profiles landscape
30-50mm
5.40m-all/2.20m (35mm + 40mm)
yes
03-001417/03-001380/03-001379/03-001416/03-001388/03-001374/03-001378/03-001375
Cross-rail connector IR on C or C-N
- safe connection due to force and form closure
- completely pre-assembled
Features
insertion system
AF 13 hexagon drive
C-rail/C-N-rail/short profile landscape
50x66mm
Rail connector set IR
- rail connector works as expansion joint construction at the same time
Features
insertion system
Hexagon key 3mm
insertion rail
65x150mm
yes
03-000648/03-000499
More information about the tile roof mounting system
From roofing shingles to concrete roofing tiles: novotegra is perfect for every tile roof. It is quick and easy to fix, offers several individual solution options and is extremely stable and able to withstand stress. Our roof hooks facilitate the height-adjustable connection of the rail with the groove. The grooved guide rail can be connected to the slot bolt though the slot on the head of the roof hook and securely clamped over the fluting. The side connection eliminates high-effort mounting from below and provides a good view of the attachment point. The roof hooks are simply attached to the rafter and do not contact the roof, even under stress – expensive sheet metal tiles therefore are not necessary. The grooved guide rails enable rail overhang beyond the attachment point on the roof hook. Depending on the rail diameter, they are available for various spans and can easily be extended using plug-in connectors which are screwed in from the side.
With its click-in mechanism, the clamping system comes with an extremely comfortable and secure mounting technology for attaching modules. You can install the modules vertically or horizontally, with a single rail or with cross-rails and benefit from low installation workload thanks to pre-assembled module clamps. The module clamps are available in blank aluminum or black. This creates a visually attractive, homogenous module field.
