System details

Brickwork facade | Insertion system

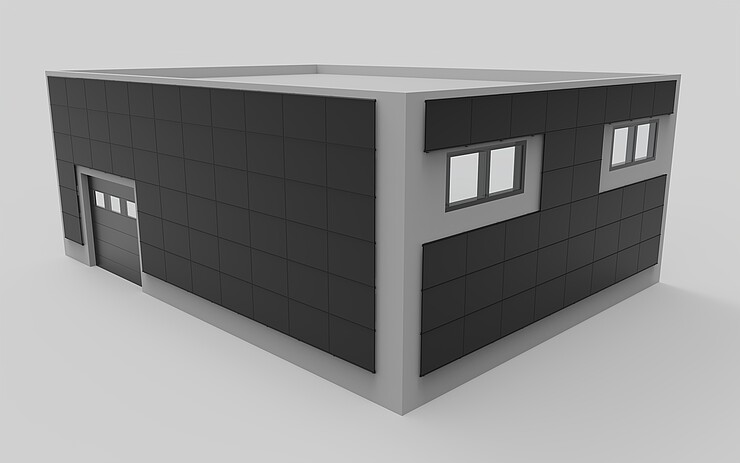

Fastening solution for non-insulated brickwork facades

High-quality appearance thanks to closed module field
No wind noise from rattling modules
Low contamination of the modules thanks to targeted water drainage in the insertion rail
Cover as visual element of the module field at the top or bottom

Plan your project

Your benefits

Possible on the most common substrates

Can be planned using a variety of commercially available fasteners (plastic dowels, concrete screws, etc.)

Easy attachment of the C-rail without additional components

Modules can be mounted in portratit or landscape

Components

Components

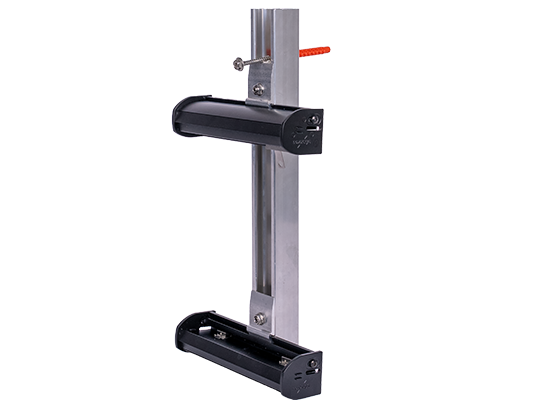

Click on the + Icons to see components of this mounting system.

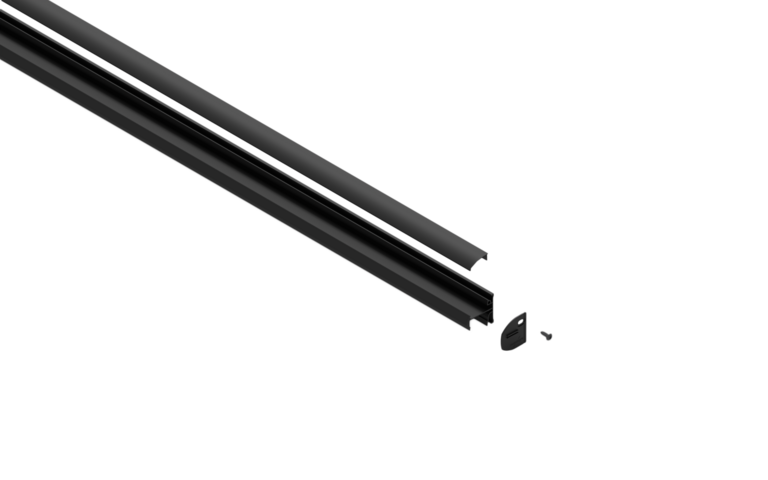

Insertion rail evo 30 & 35

tension-free, floating installation of the module
multifunctional spring element that gently presses the module against the rail for additional stability
matching covers and an advanced edge stop

Buy now

Features

Mounting type:
Insertion system

Module assembly:
Portrait, landscape

Module frame height:
30-35 mm

Lengths:
5,40 m

Variations:
Black

Product number:
03-001823/03-001834

Edge stop set evo

Covers both 30 mm and 35 mm frame heights
A black screw as well as a contour matching the rail complete the design of the evo rail

Buy now

Features

Product number
03-001845

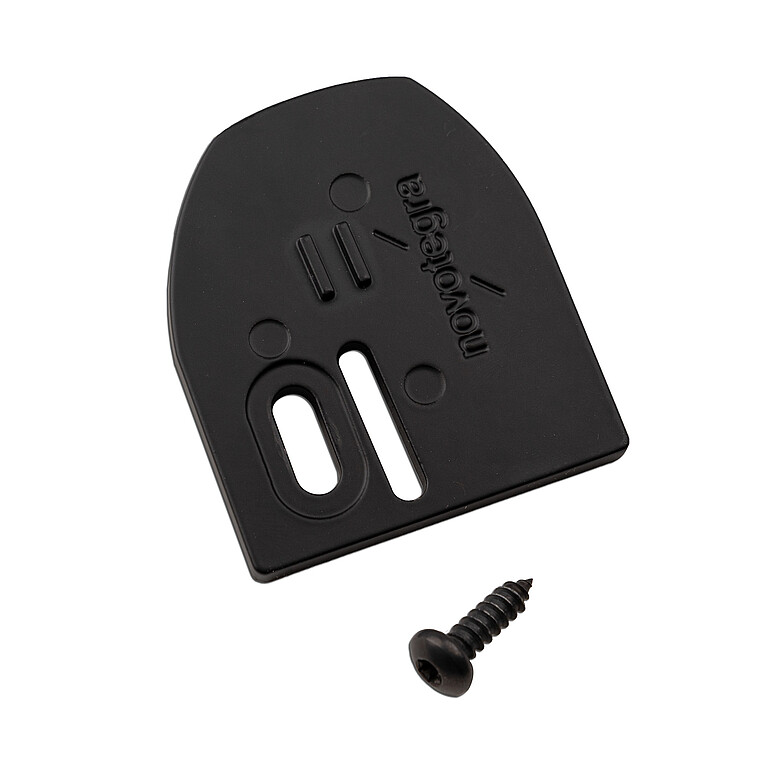

Mute sheet

Prevents modules from “rattling” due to the lack of pressing forces on the facade compared to a pitched roof
Integrated 5 mm spacer simplifies installation and securely holds the modules in position

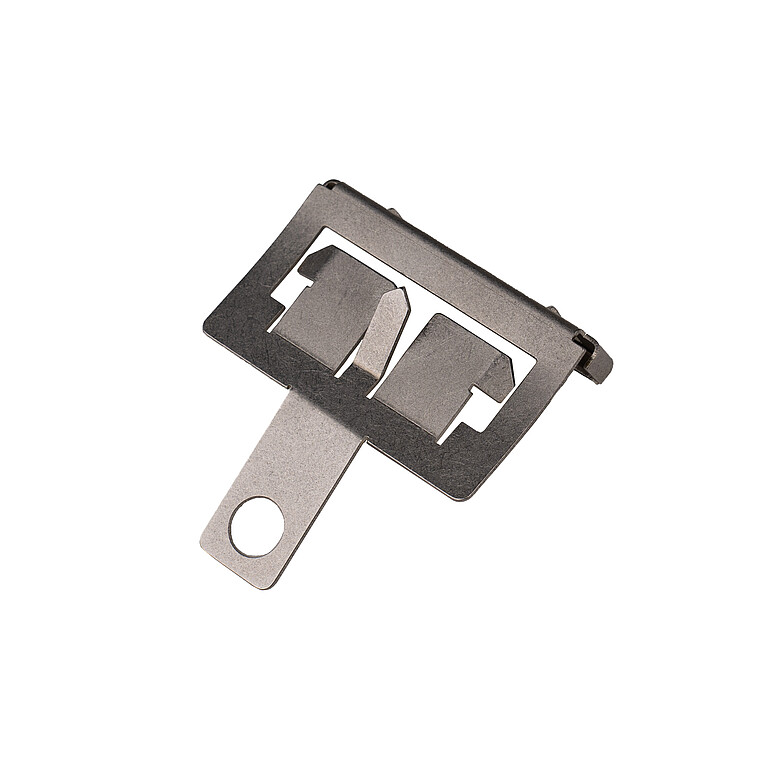

Integrated contact tab allows a connection of the insertion rail to the equipotential bonding to be made on-site

Features

Product number:
03-0001815

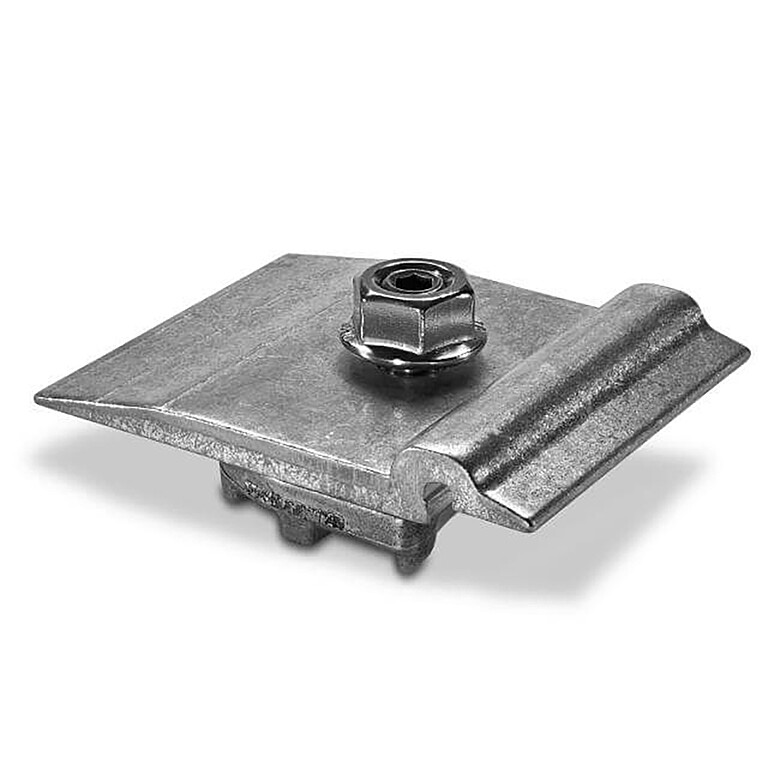

Cross rail connector set C IR M8

Connector for fixing insertion rails on C-rails, C-N-rails and short rails

completely pre assembled
screwed from the top

Buy now

Features

Product number:
03-000321

Rail connector set IR

To extend the insertion rails

rail connector works as expansion joint construction at the same time

Buy now

Features

Mounting type:
insertion system

Mounting tool:
Hexagon key 3mm

Compatible with:
insertion rail

Dimensions:
65x150mm

Available in black:
yes

Product number:
03-000648/03-000499

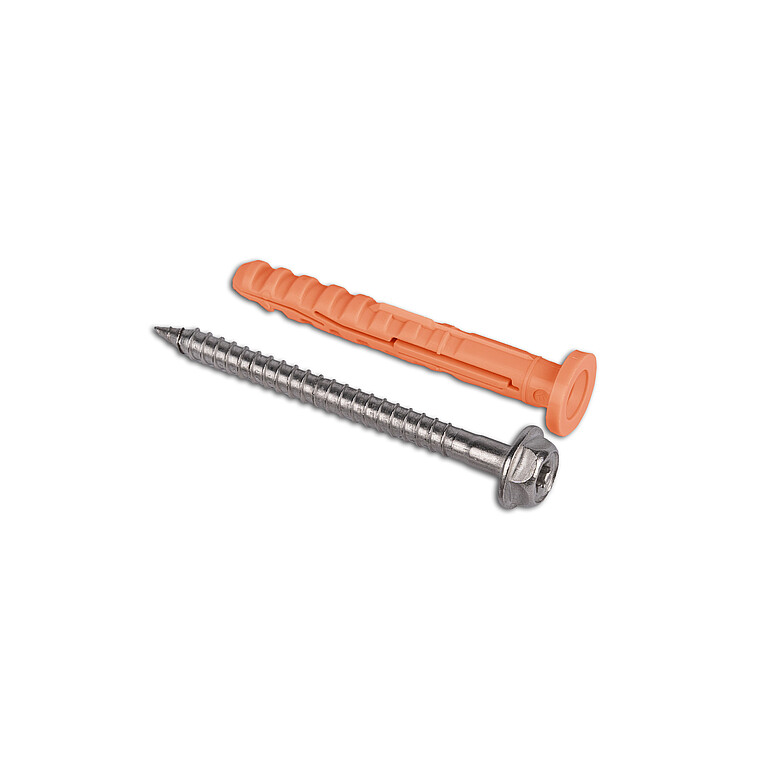

Facade dowel 10 x 80 with bolt

Secure fastening of the evo insertion rail to the facade

Features

Compatible systems:
Brickwork facade

Product number:
03-000832

C-rail 47-2

For use as a module support rail, as a cross rail or as cable channel

also acts as a cable channel
can be stepped on throughout installation
big cantilever possible

Buy now

Features

Rail type:
can be used as module support rail, cross rail or cable channel

Load capacity:
high

Compatible roof attachments:
roof hook top-fix, stock screw, seam clamps

Compatible module attachments:
module clamps, insertion rails

Dimensions:
52x47mm/2mm rail bottom

Lengths:
2.20 m/2.40 m/3.60 m/4.80 m/5.90 m

Available in black:
yes

Product number:
03-001366;03-001367;03-001441;03-001368;03-001369;03-001370

Downloads

Data sheets

Brickwork facade | insertion system EN

Module recommendation

Module recommendation facade systems

Manufacturer: Aleo Solar, Bauer Solar (AbZ/DIBt), Canadian Solar, EXE Solar, Meyer Burger, SoliTek (AbZ/DIBt), SoLuxTec, Solyco, SunPower Maxeon, SOLARWATT

The values for wind and snow loads (Pa) can be found in the installation instructions provided by the module manufacturer. The load values must be checked individually for each module type. The modules are held in place on the long side of the frame by a slide-in rail.

Note: In Germany, modules used for overhead and façade installations require general building approval (AbZ/DIBt).
