System details

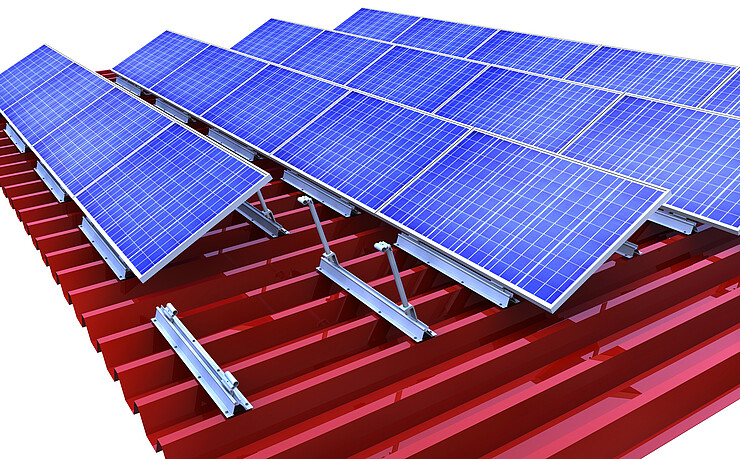

Trapezoidal metal roof | Elevation on pitched roofs
Clamping system with direct fixing and landscape-mounted modules
- additional elevation on pitched roofs up to 30° elevation angle
- elevation angle continuously adjustable
- high flexibility thanks to different lengths of module supports
- module clamping in the optimum clamping range
Your benefits
Your benefits

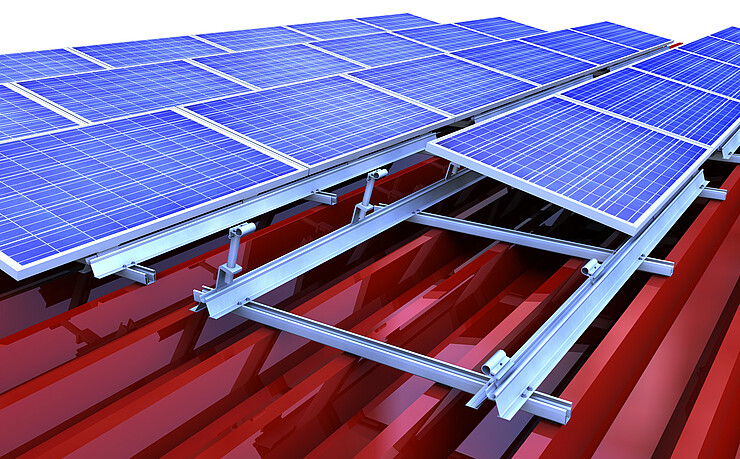

stability thanks to cross rail connection and clamping of the modules to the module frame holes
module supports up to 520 mm enable mounting on north-facing roofs in a south-facing direction
optimal module angle for good efficiency and self-cleaning
direct fixing with building authority-approved thin sheet screws
