Product details
novotegra side-fix roof hooks
Robust aluminium cast hooks without weld seam
- quick roof hook installation thanks to click technology
- simple attachment to the rafter
- easy to install connection from the side
- low mounting height
- for tile overlaps of up to 110 mm
Your benefits
Your benefits
side rail mounting with a view of the mounting point
small distance between the substructure and the roof covering
no sitting up even under load - expensive sheet metal tiles are not required
Height-adjustable rail connection
Variants
side-fix roof hooks at a glance

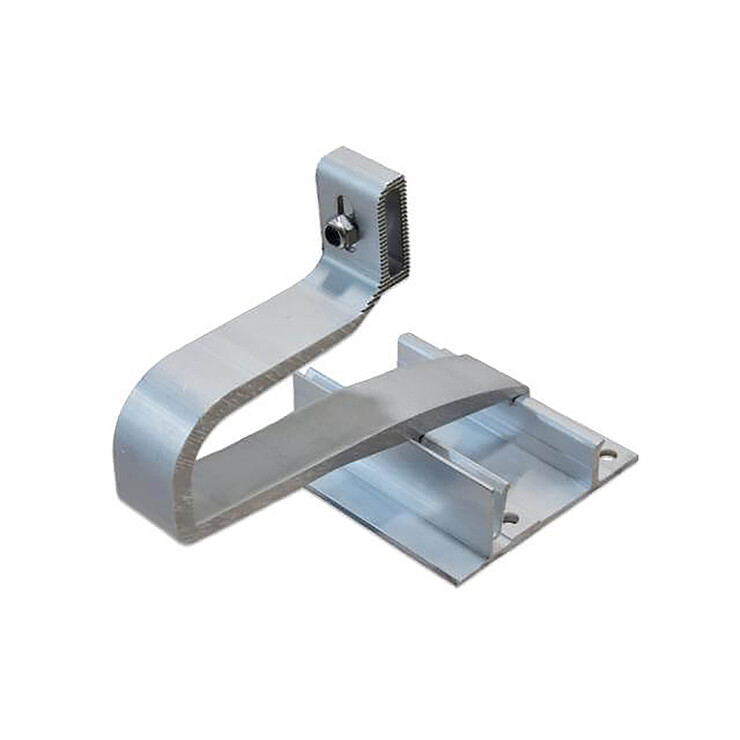

ZD30 N35
- for mounting cross and drop rails
- for tile coverings up to approx. 110 mm
- min. rafter width 46 mm
- height adjustment of base profile from 45 mm + shims
- height adjustment rail connection 20 mm

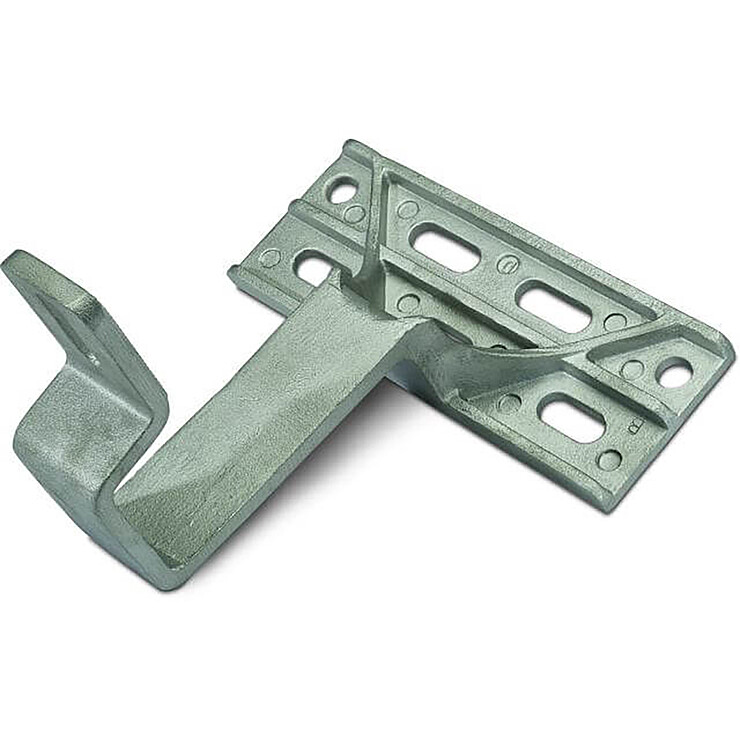

ZD 544 horizontal
- for mounting cross rails
- for tile coverings up to approx. 100 mm
- min. Rafter width 46 mm
- height adjustment of base profile from 45 mm + shims
- height adjustment rail connection 26 mm

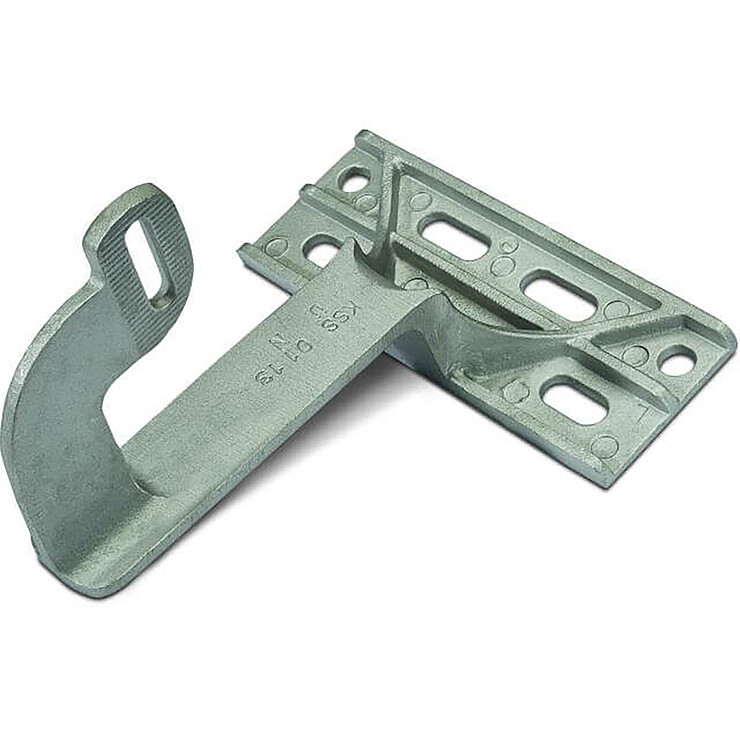

ZD 533 vertikal
- for mounting vertical rails
- for tile coverings up to approx. 100 mm
- min. rafter width 46 mm
- height adjustment base profile from 45 mm + shims
- height adjustment rail connection 26 mm

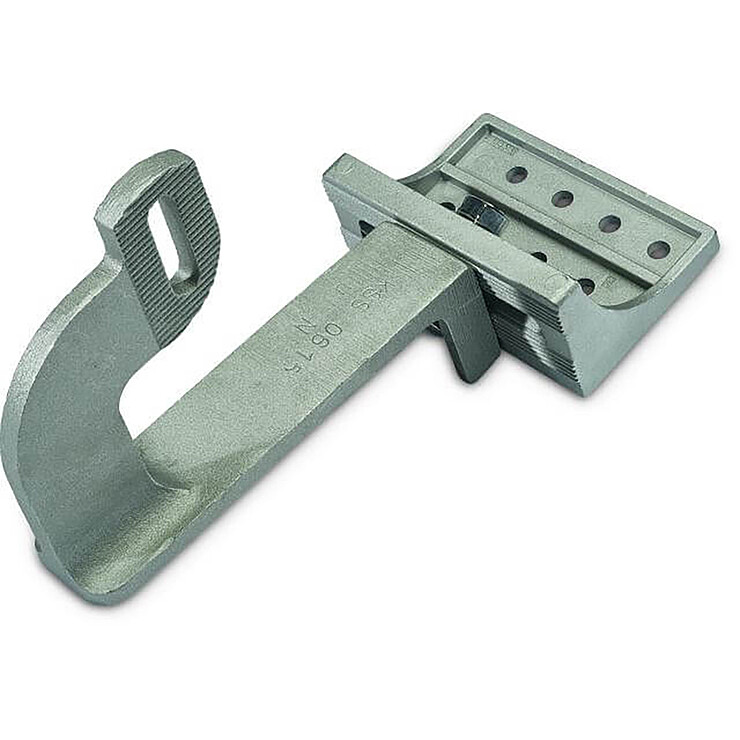

ZD 633 vertikal
- for mounting vertical rails
- for tile coverings up to approx. 100 mm
- min. rafter width 46 mm
- height adjustment of base profile from 41-56 mm
- height adjustment rail connection 26 mm
